Sayan Asked a Question
May 8, 2020 5:01 pmpts 30 pts
  • IIT JAM
  • Physics (PH)

Voltage across the capacitor in the diagram

  • 3 Answer(s)
Answer Now
  • 0 Likes
  • 6 Comments
  • Shares
  • Somnath Best Answer

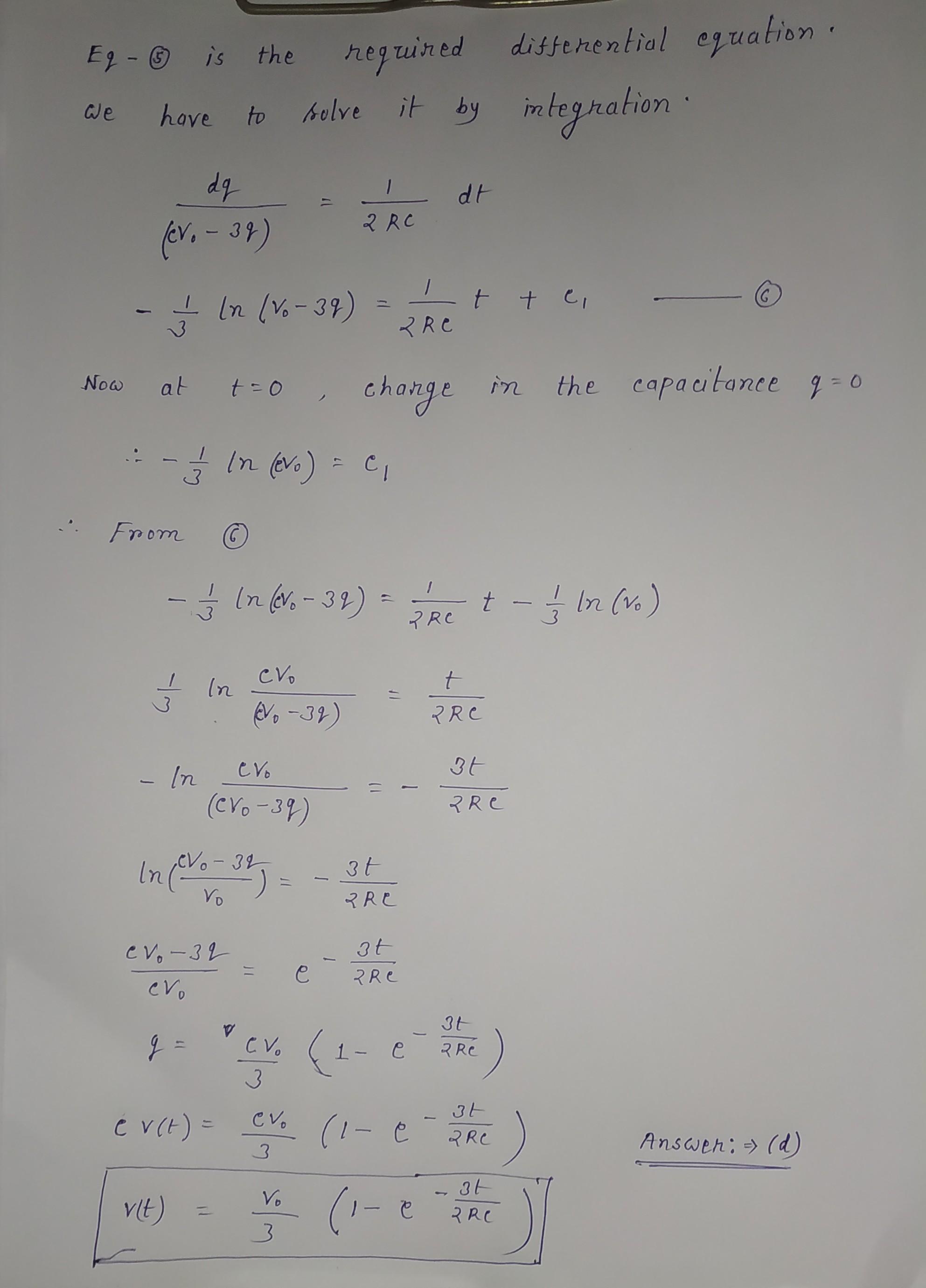

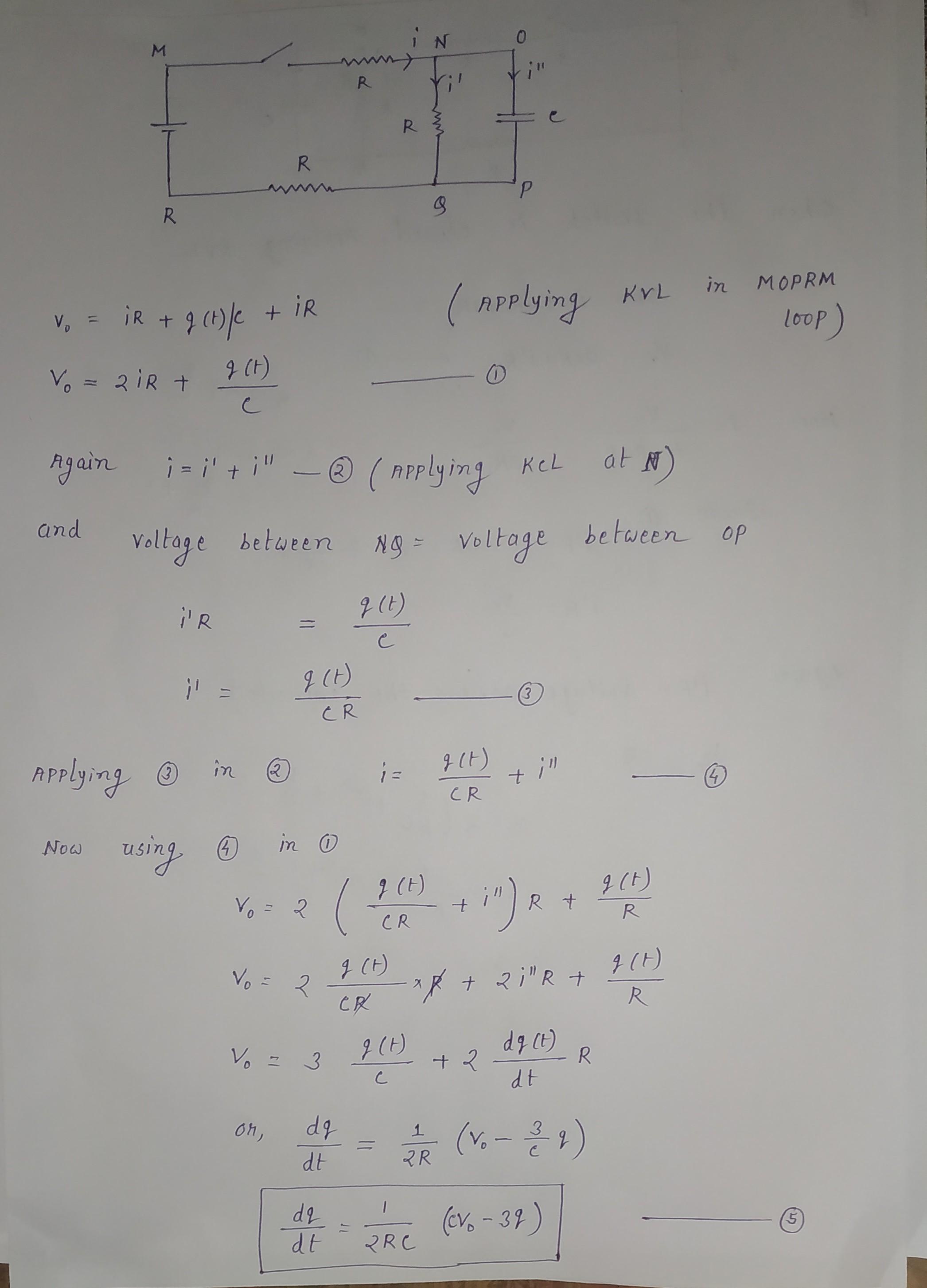

    Details step by step solution is given in the attached file.It is looking little bit lengthy because i have performed every step for your better understanding.
    • cropped8049193714783608861.jpg
    • cropped2407604637807576112.jpg
    Likes(1) Reply(0)
  • Abhishek singh thankyou

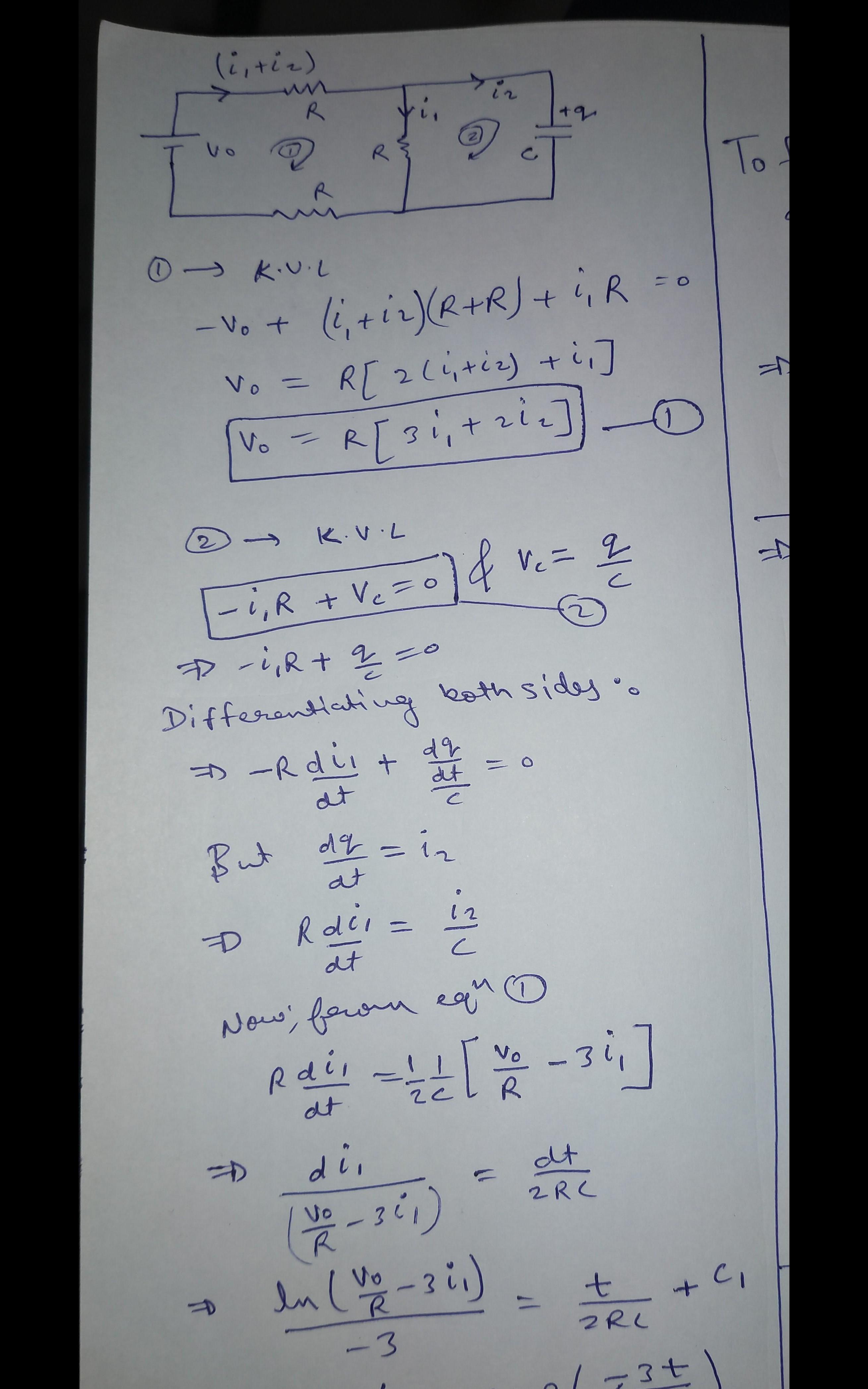

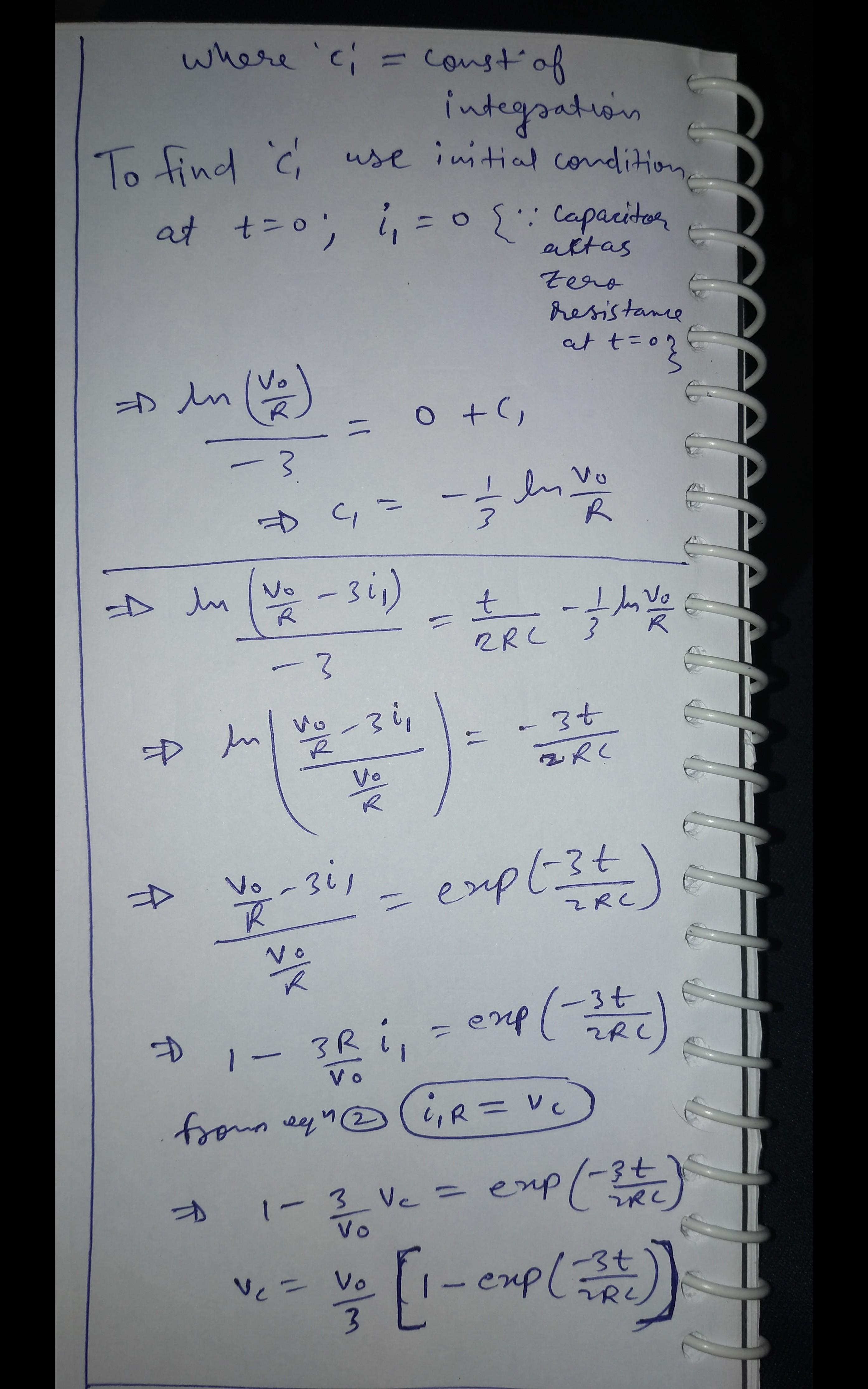

    A detailed stepwise solution is attached. Best regards.
    • cropped7691546888852633436.jpg
    • cropped6952753697220340232.jpg
    Likes(2) Reply(1)
    Abhishek singh
    is better to know the method to solve this type of questions. And the prerequisite is KVL. you should have knowledge of KVL, rest of the method is above mentioned. Regards.
  • Ruby negi

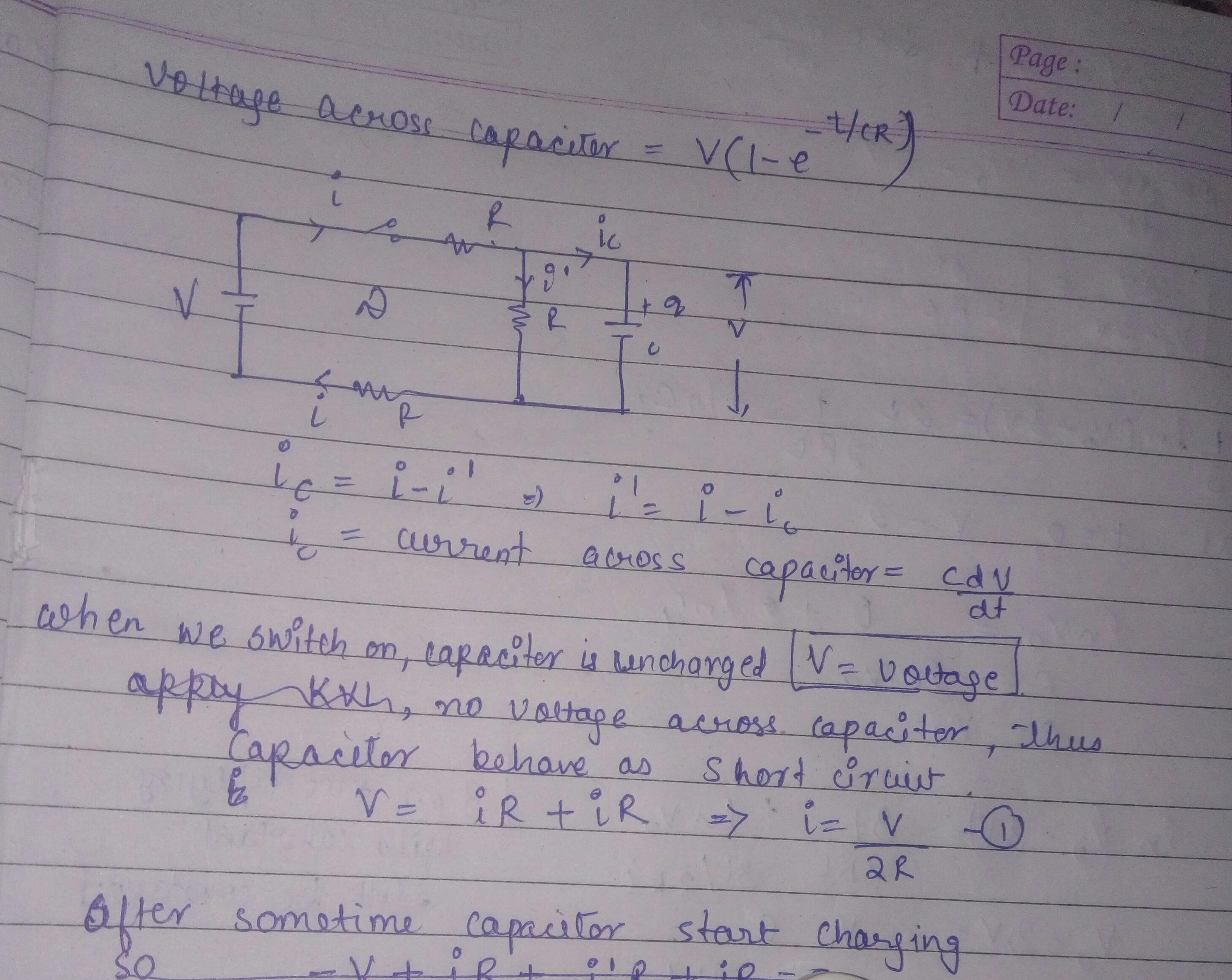

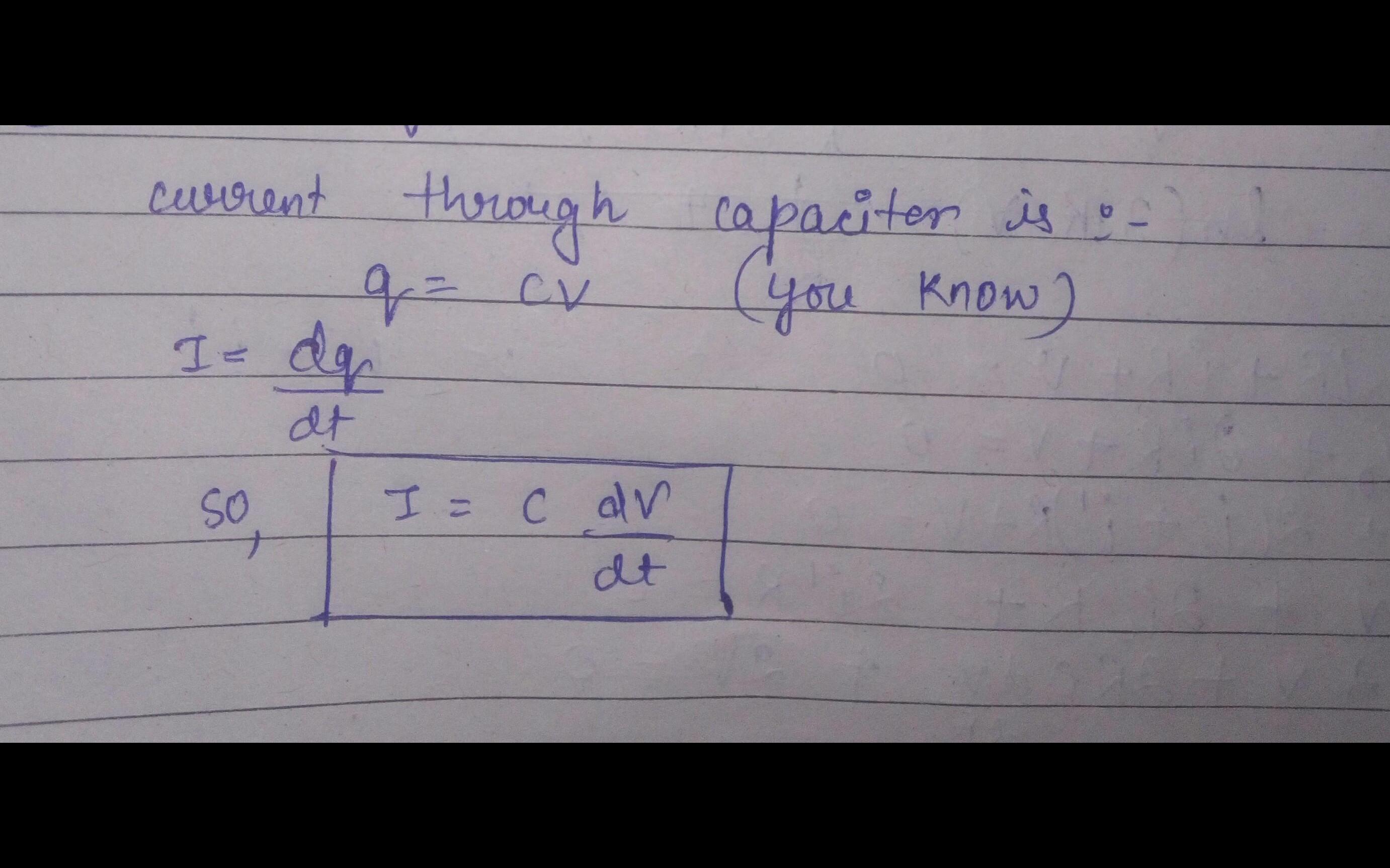

    I use this formula and kvl only ..according to me,option d is correct... for any query please ask..
    • cropped1985071812.jpg
    Likes(2) Reply(0)
  • Ruby negi

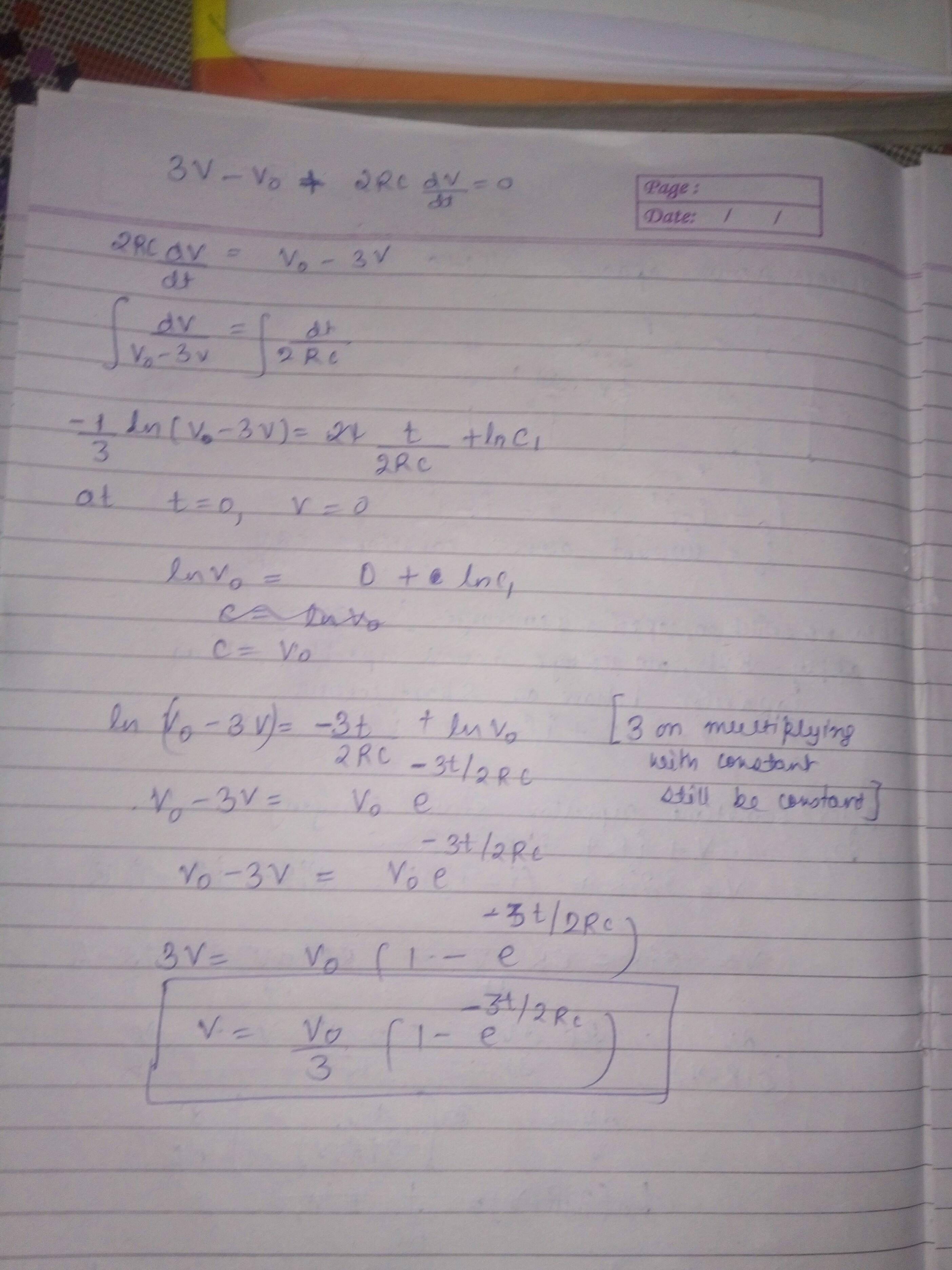

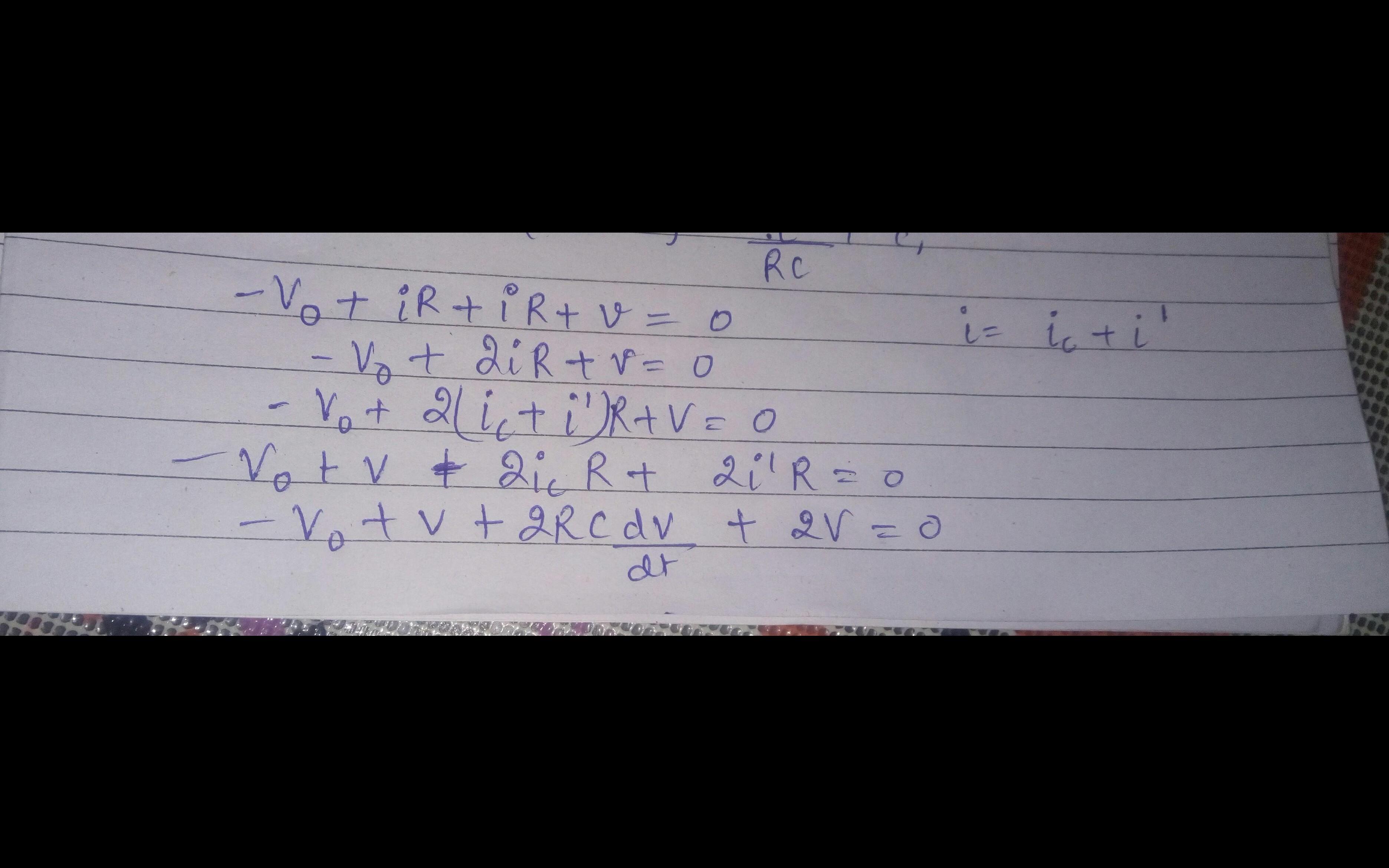

    i apply kvl in the loop.... I hope you will get the solution... feel free to ask...
    • cropped-1574376375.jpg
    • cropped-645381633.jpg
    • cropped1248428786.jpg
    Likes(3) Reply(1)
    Sayan
    thank you madam
  • Dhairya sharma
    more clear images dear!

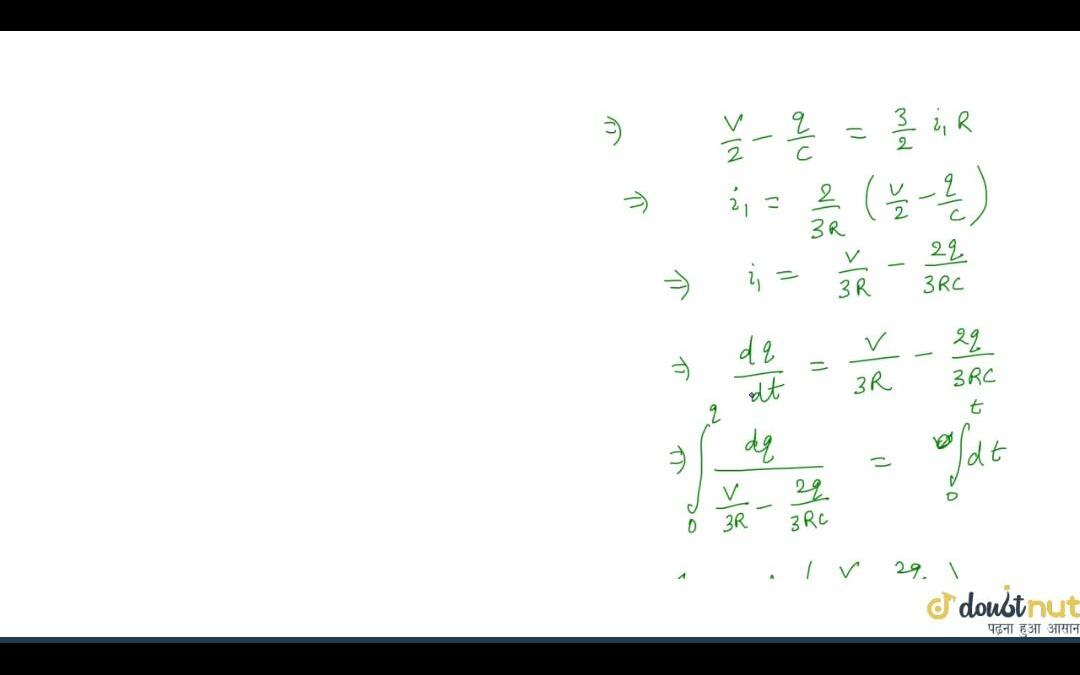

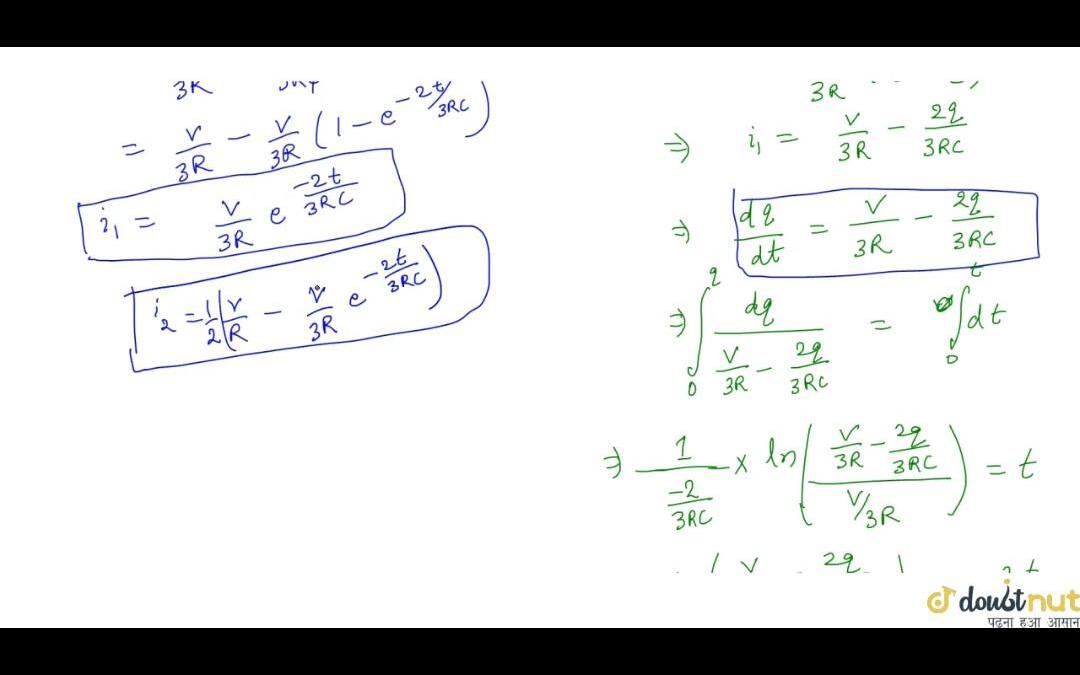

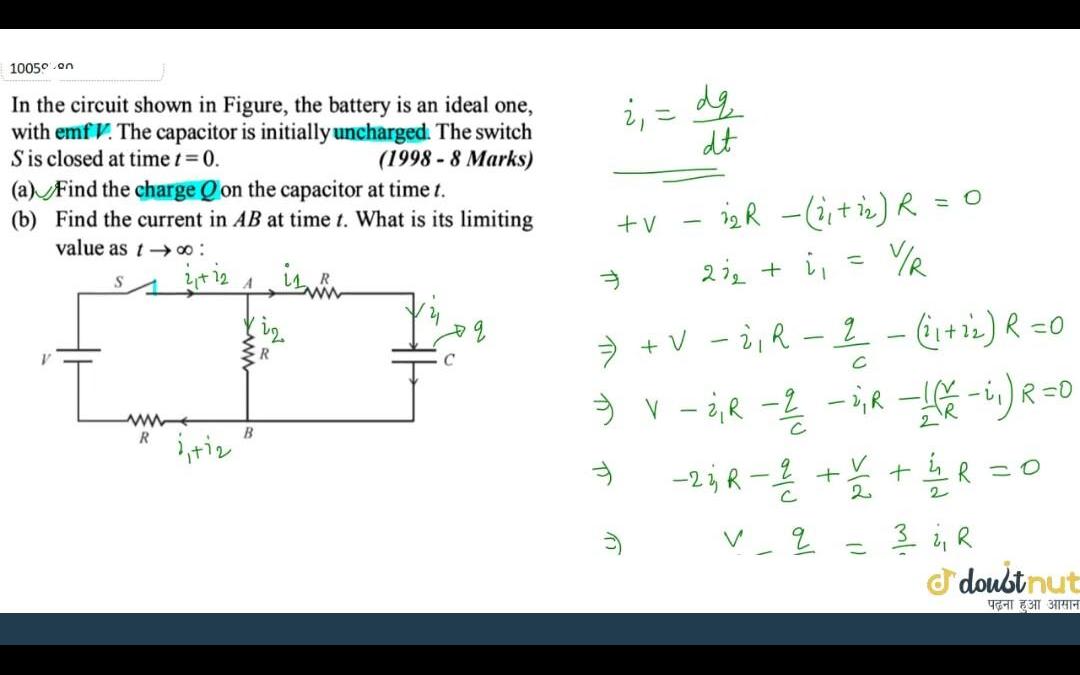

    • cropped-488651737.jpg
    • cropped-1494707644.jpg
    • cropped-1987350721.jpg
    Likes(1) Reply(0)
  • Dhairya sharma thankyou

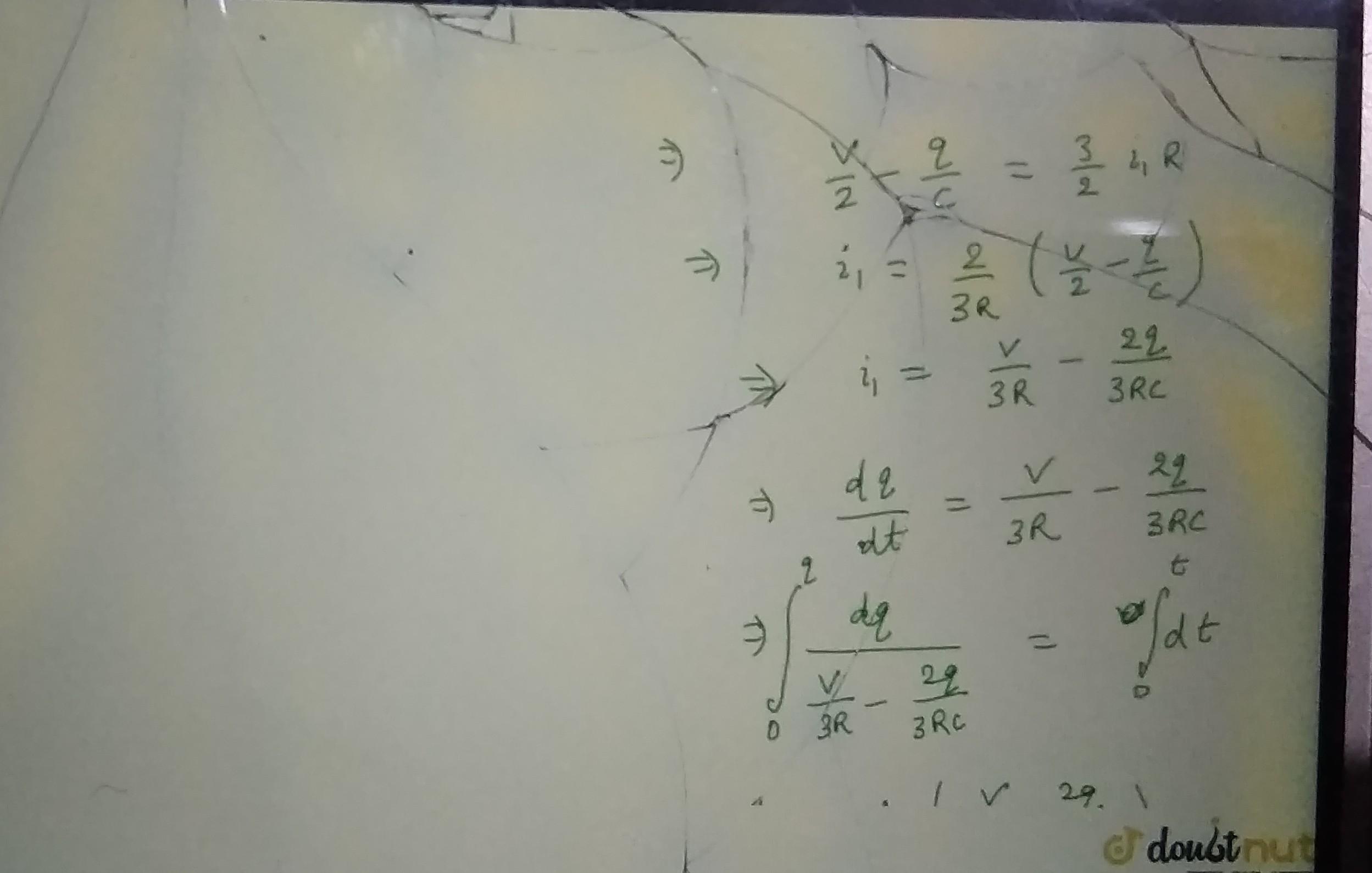

    it will help you

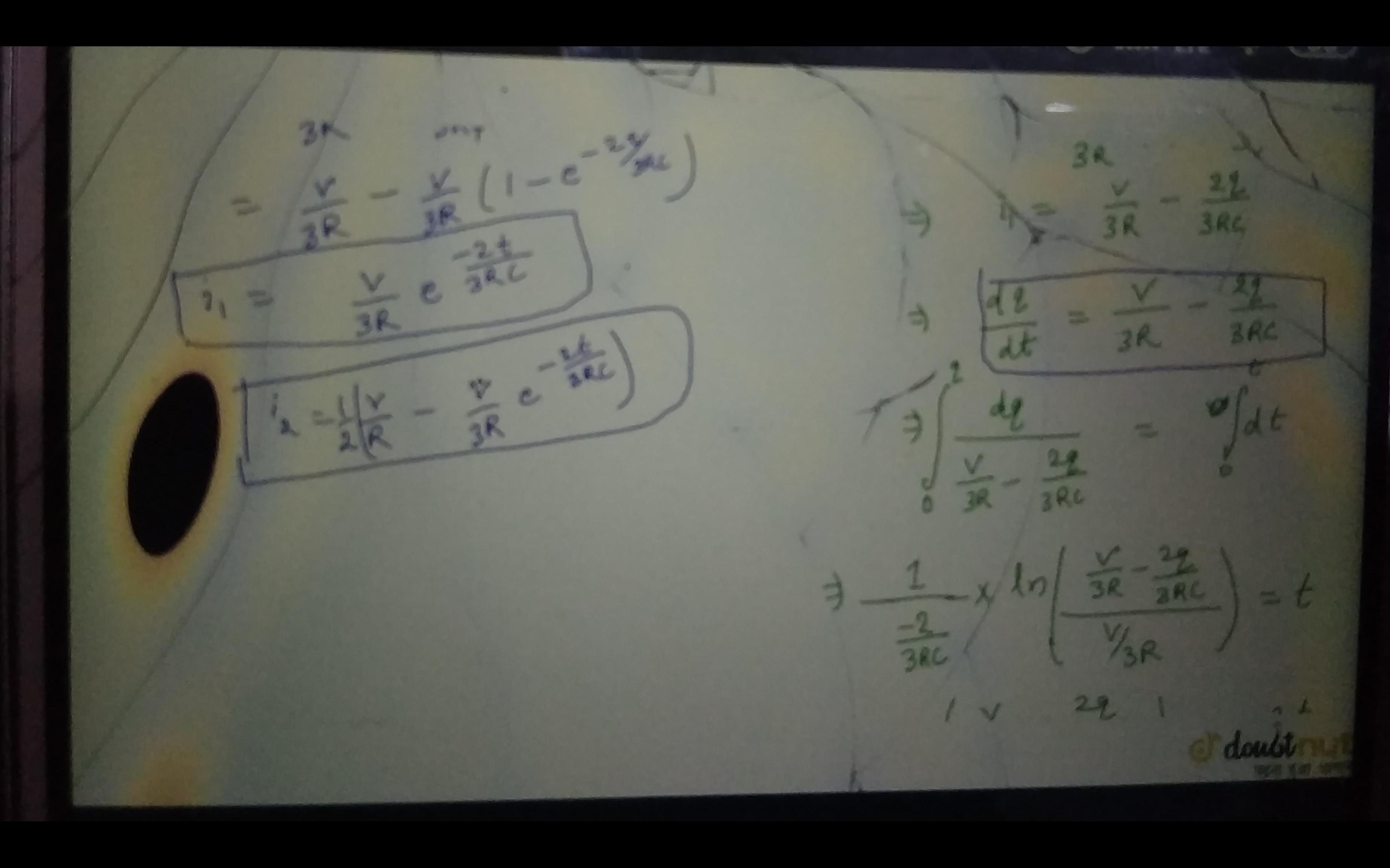

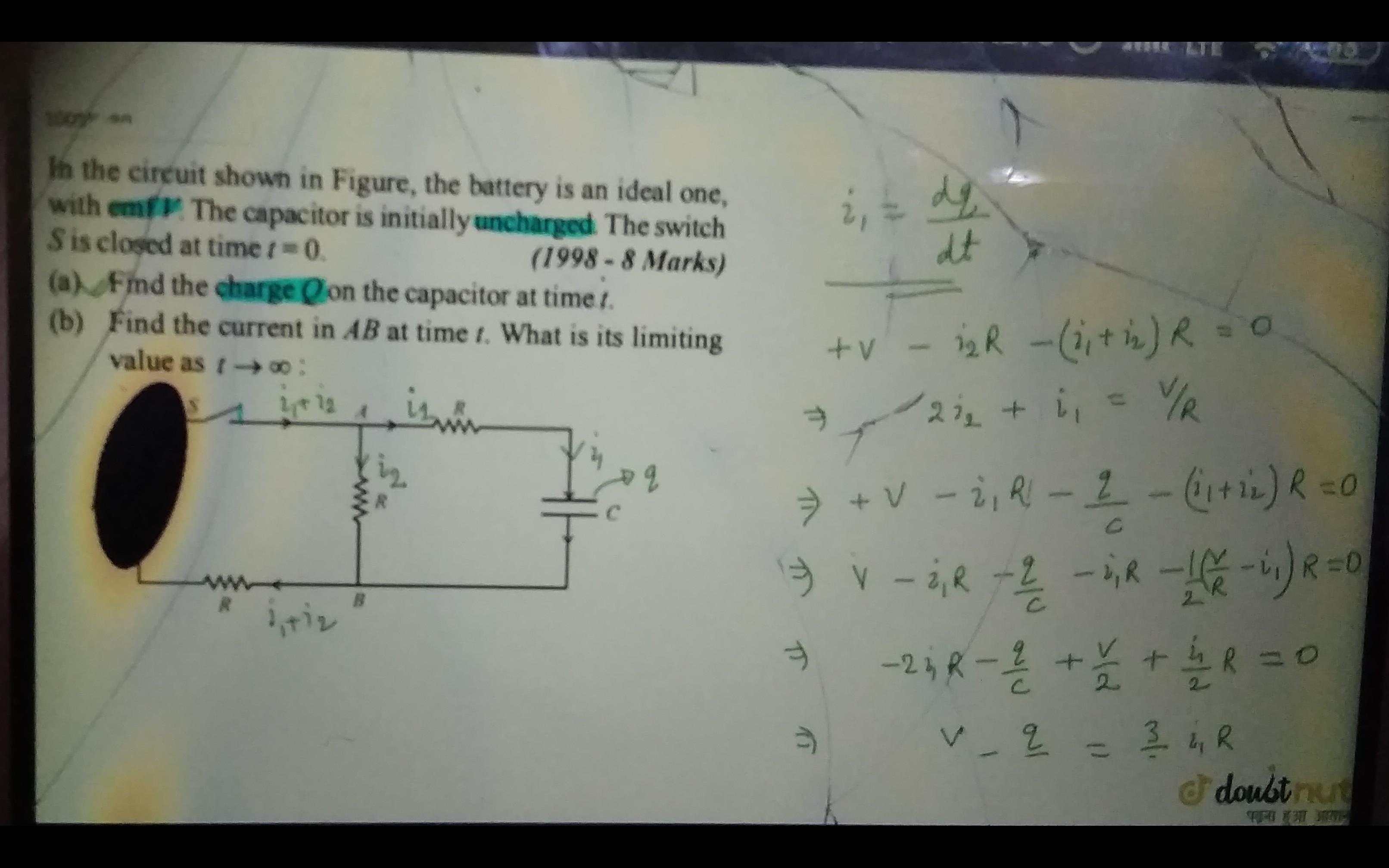

    • cropped3404339037900549545.jpg
    • cropped4835461389577107382.jpg
    • cropped1550580441695346157.jpg
    Likes(0) Reply(0)
