Subrat Asked a Question
May 16, 2020 8:17 pmpts 30 pts
wave and oscillation. here x=Asin(wt+_phi) or Acos(wt+_phi)
  • 2 Answer(s)
  • 0 Likes
  • 10 Comments
  • Shares
  • Chandra dhawan
    see attached file it's very helpful for you dear
    Likes(1) Reply(0)
  • Chandra dhawan

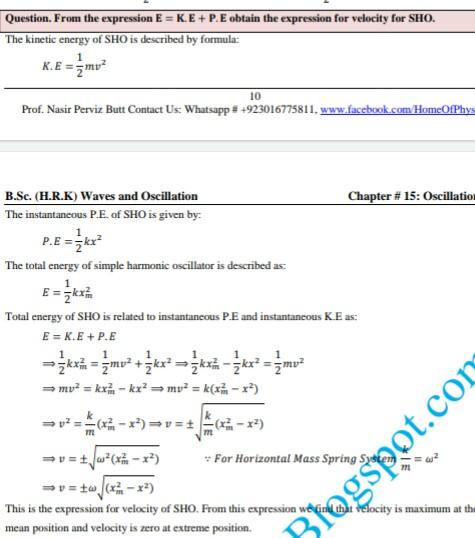

    see attached file
    • cropped-1036499218.jpg
    • cropped-2025875580.jpg
    Likes(1) Reply(0)
  • Abhishek singh
    Actually cos(wt) and sin(wt) are not different, they have just a phase difference of π/2. They both can be the solution of a given equation. just the phi will change, rest will rem...
    Show more
    Likes(2) Reply(0)
  • Subrat
    thanks all of u
    Likes(1) Reply(0)
  • Subrat
    now I understood
    Likes(1) Reply(0)
  • Subrat

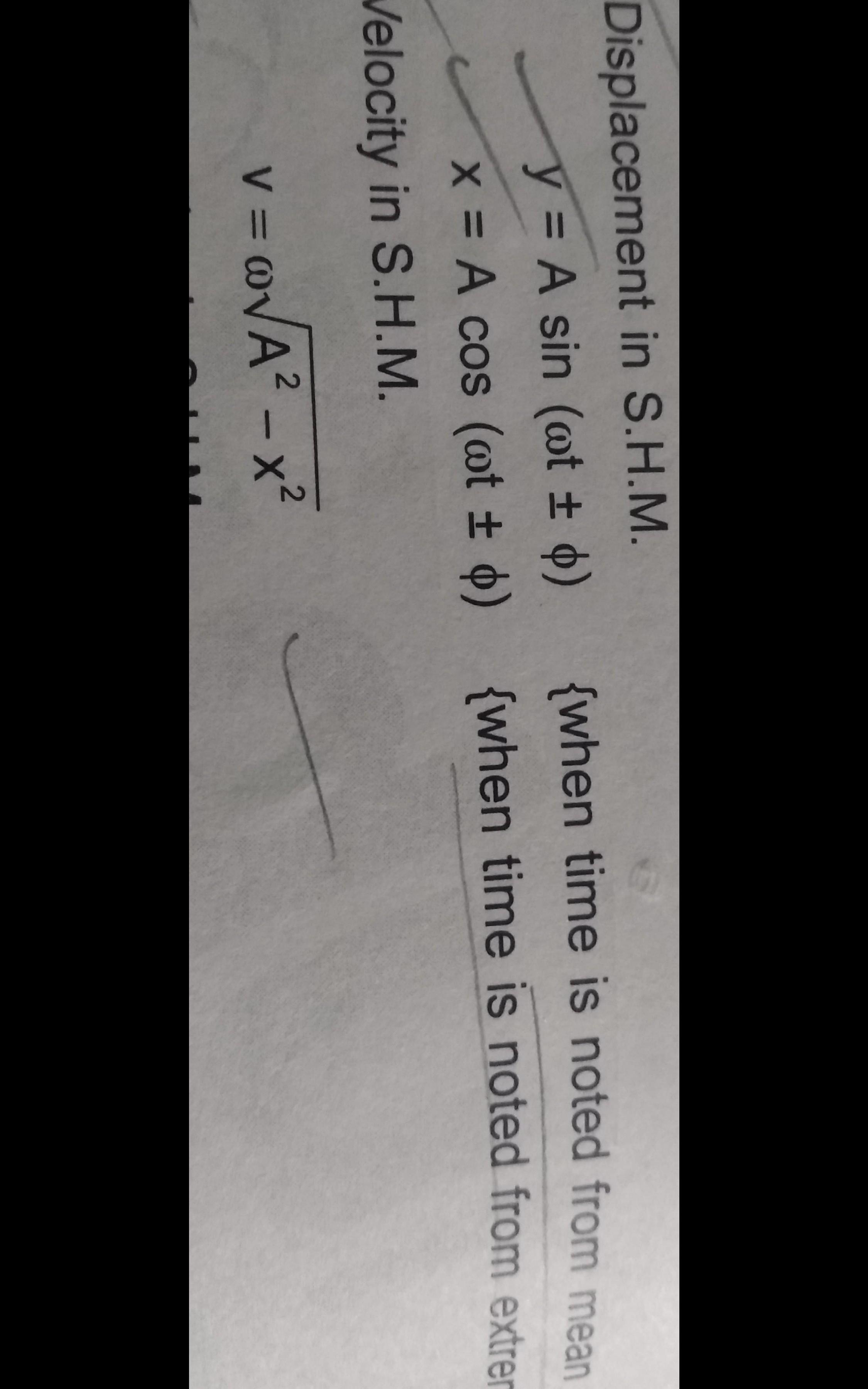

    by putting value of x , we get a negative sign. so I confused
    • cropped5495607134407636774.jpg
    Likes(0) Reply(0)
  • Dhairya sharma

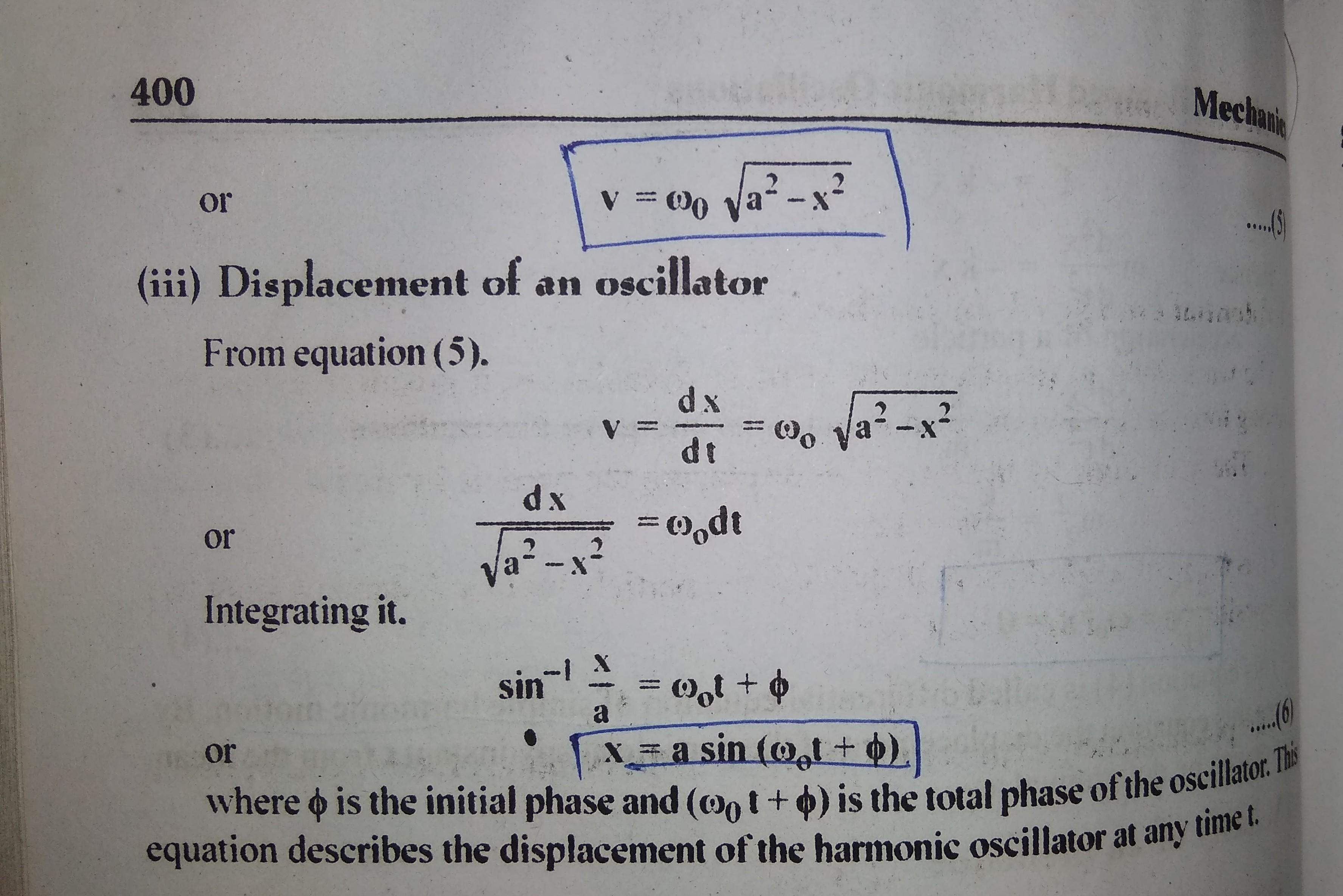

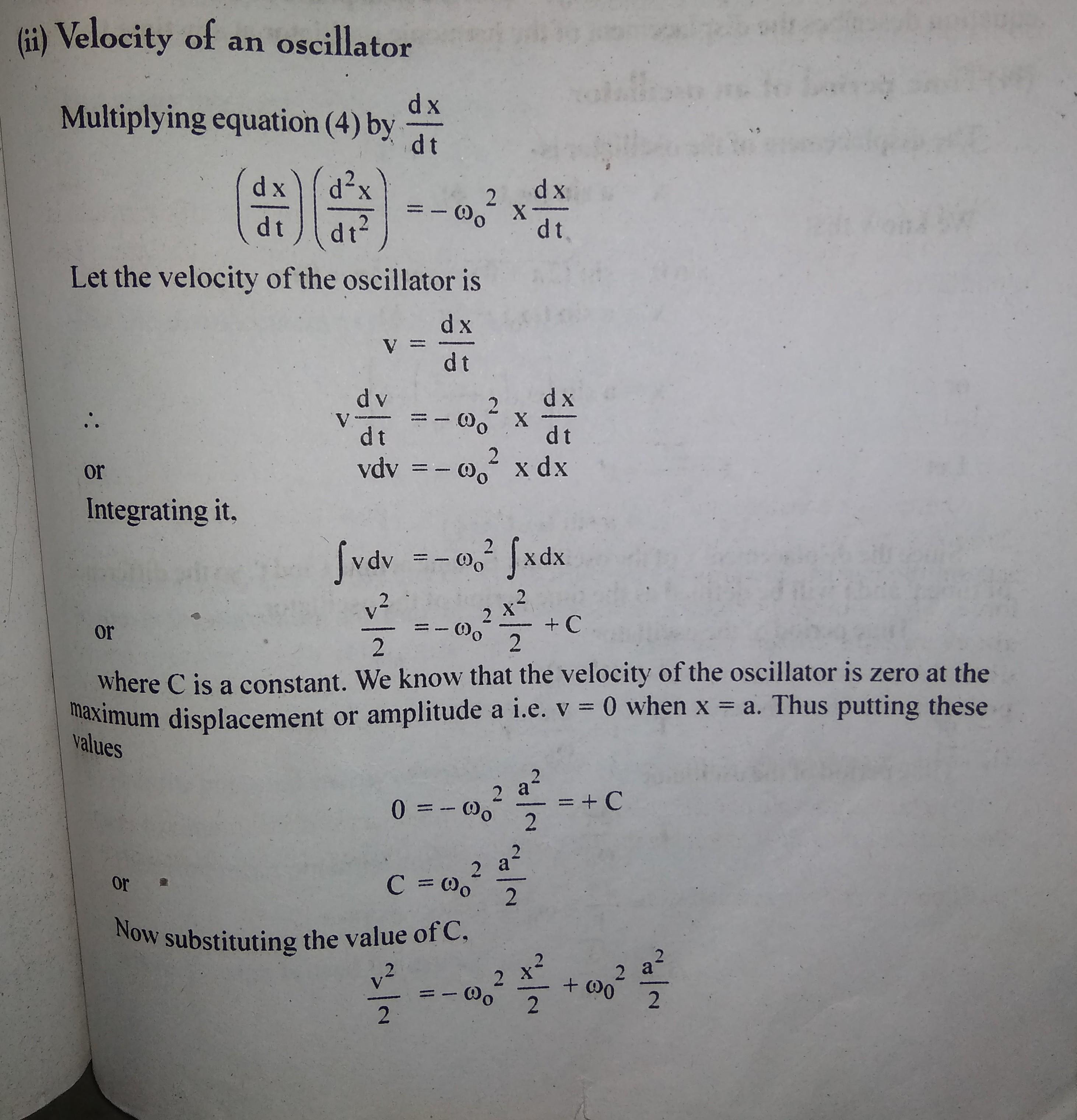

    see attached I gave explanation for both displacement and the velocity of the oscillator.
    • cropped4118610433661038882.jpg
    • cropped3786826560019341495.jpg
    Likes(1) Reply(0)
  • Abhishek singh thankyou
    you can take either! It's totally dependent on initial conditions. if initially partycal is at extream position, then it should be cos(wt) , because cos(0) = 1, but if initially it...
    Show more
    Likes(2) Reply(0)
  • Ruby negi thankyou
    ans to your question.
    • cropped-322192221.jpg
    Likes(1) Reply(1)
    Ruby negi
    what clarification you want ?
  • Ruby negi
    ans to your question..
    • cropped-1505312204.jpg
    Likes(1) Reply(0)
