What will be the position of displacement vector for the other options?

What would be the D.V for other 3 options and how to Plot them on the stereonet

2 Answer(s) Answer Now
  • 2 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Sajan sarthak Best Answer

    See answer below

    eduncle-logo-app

    If the Displacement is in the direction of true Dip of plane then, it'll be in centre and moves away as it moves towards the app.dip direction,and also is it always in the line of fault plane,Am I right?

    eduncle-logo-app

    yes all are correct and it's always on the line of fault plane

  • comment-profile-img>
    Rahul kumar best-answer

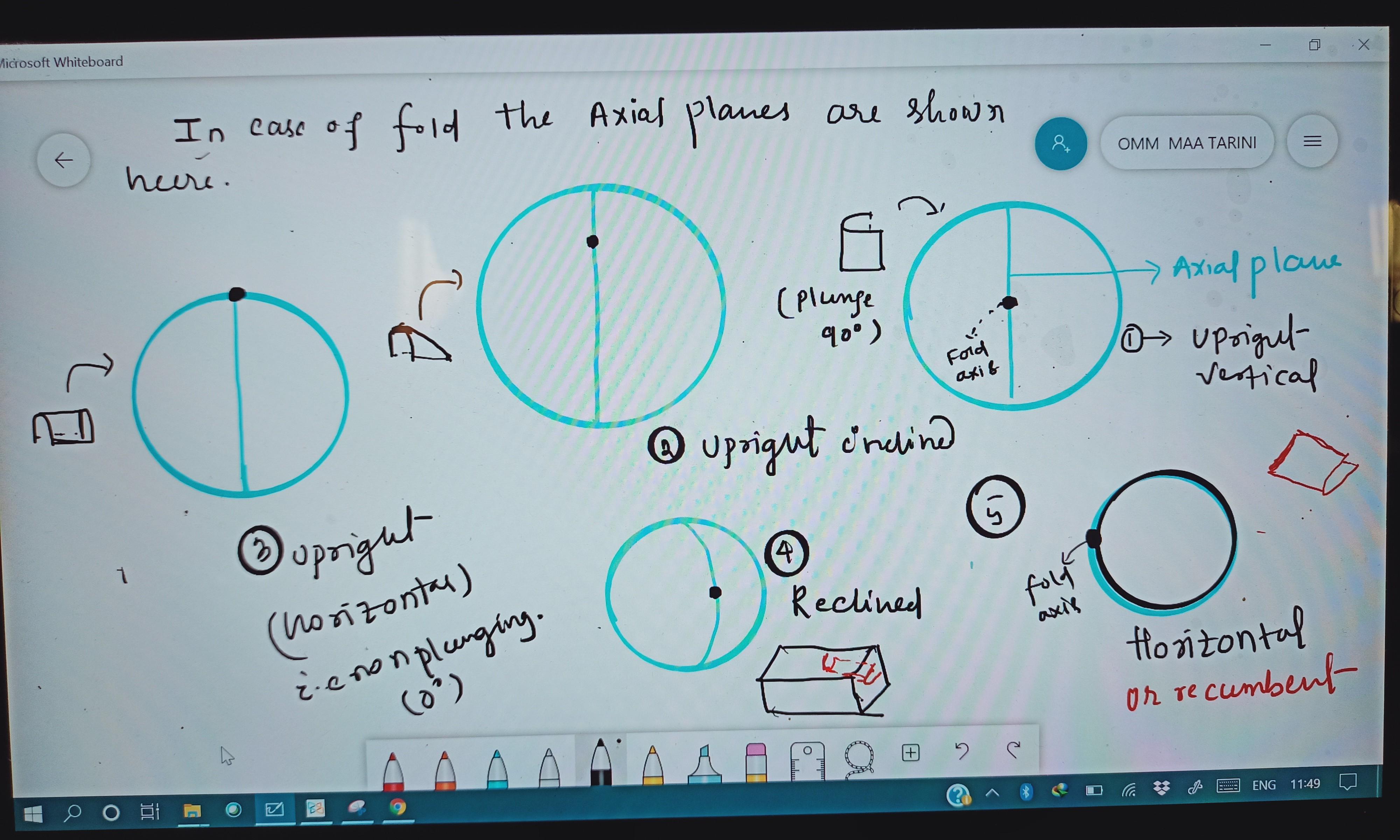

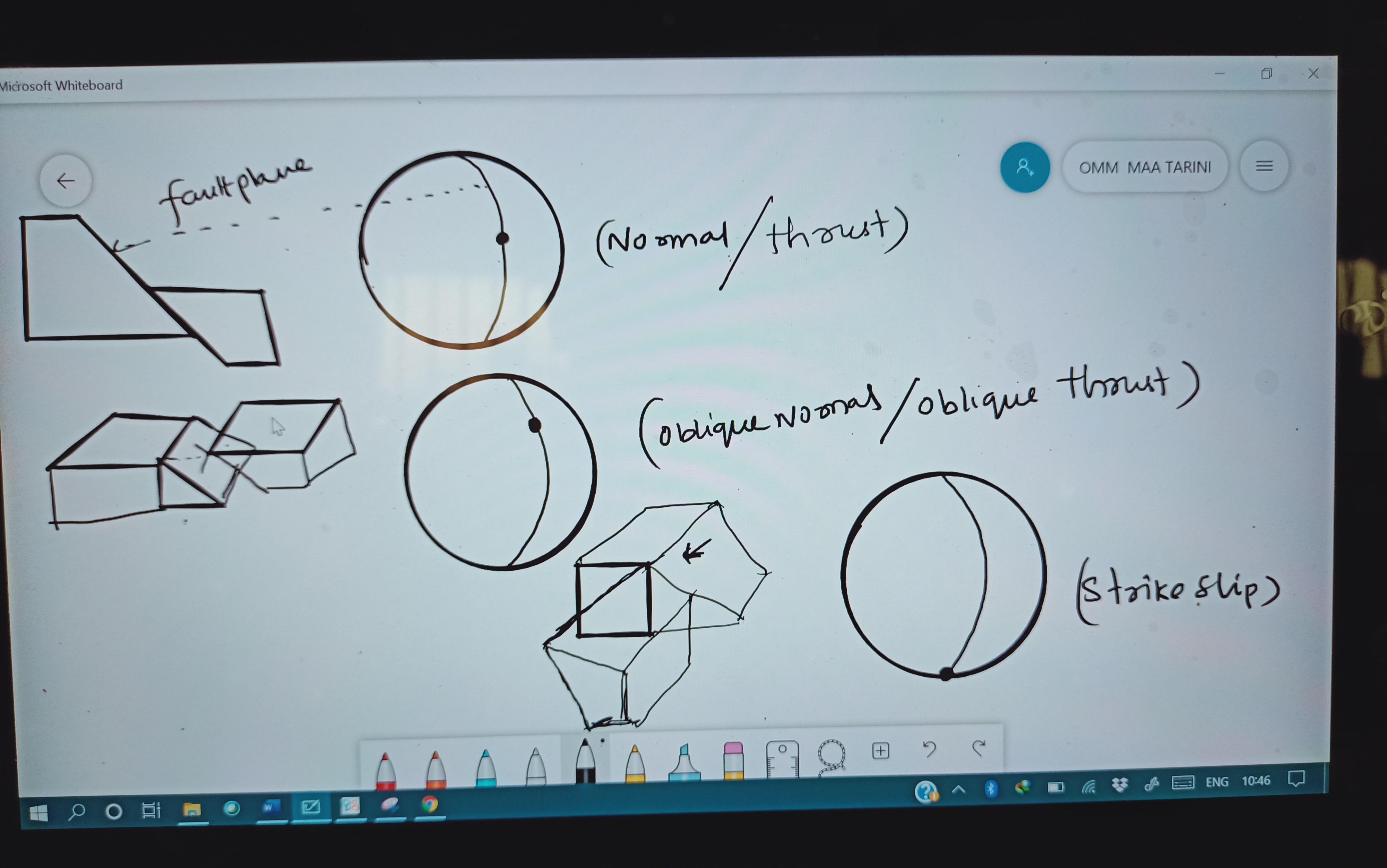

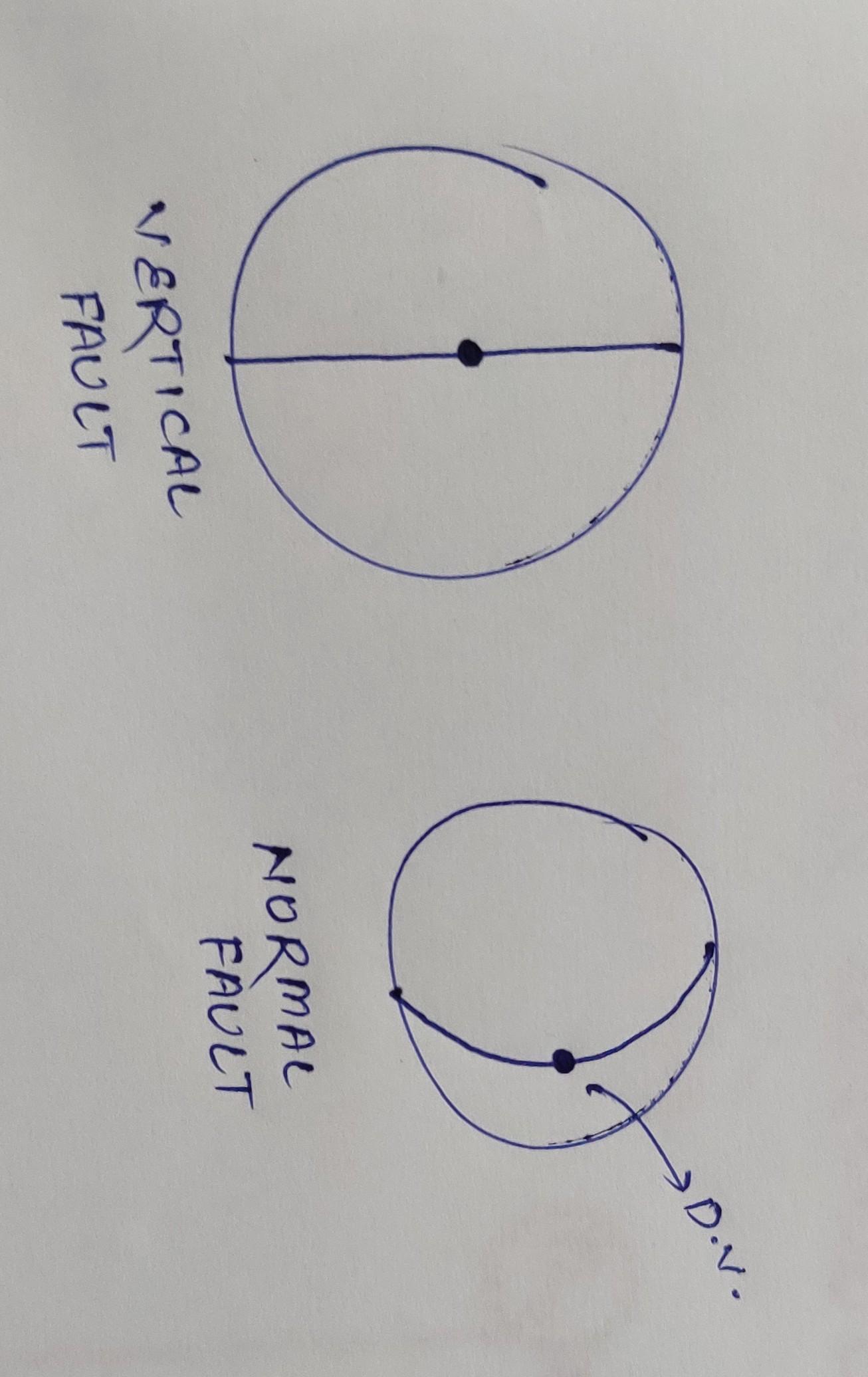

    The Answer should be option-D (strike-slip Fault) because displacement vector is horizontal. Find the stereographic projection for vertical Fault, normal Fault and thrust fault below in the figure.
