What will be the value of the voltage?

3 Answer(s) Answer Now
  • 0 Likes
  • 11 Comments
  • 0 Shares
  • comment-profile-img>
    Ruby negi best-answer

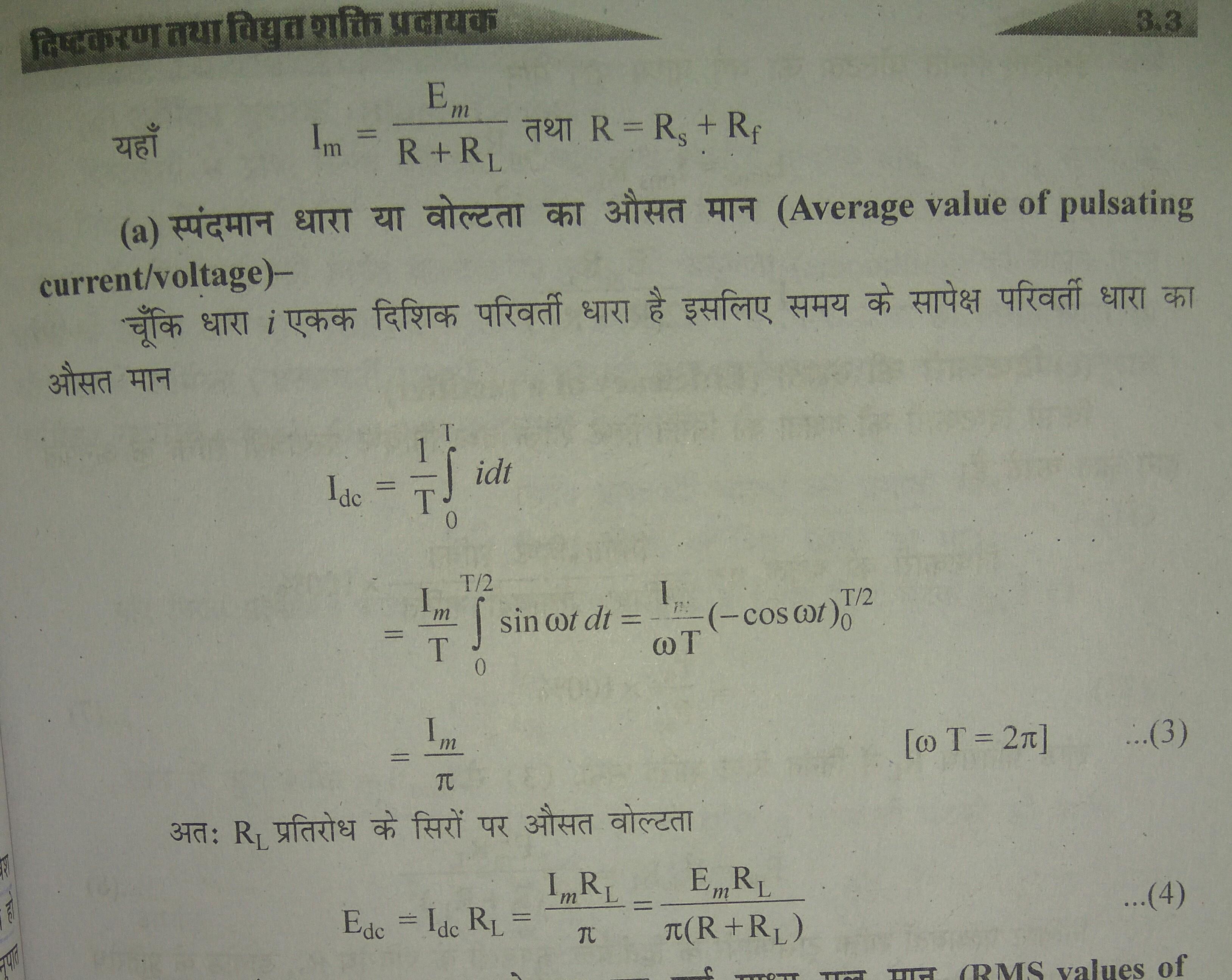

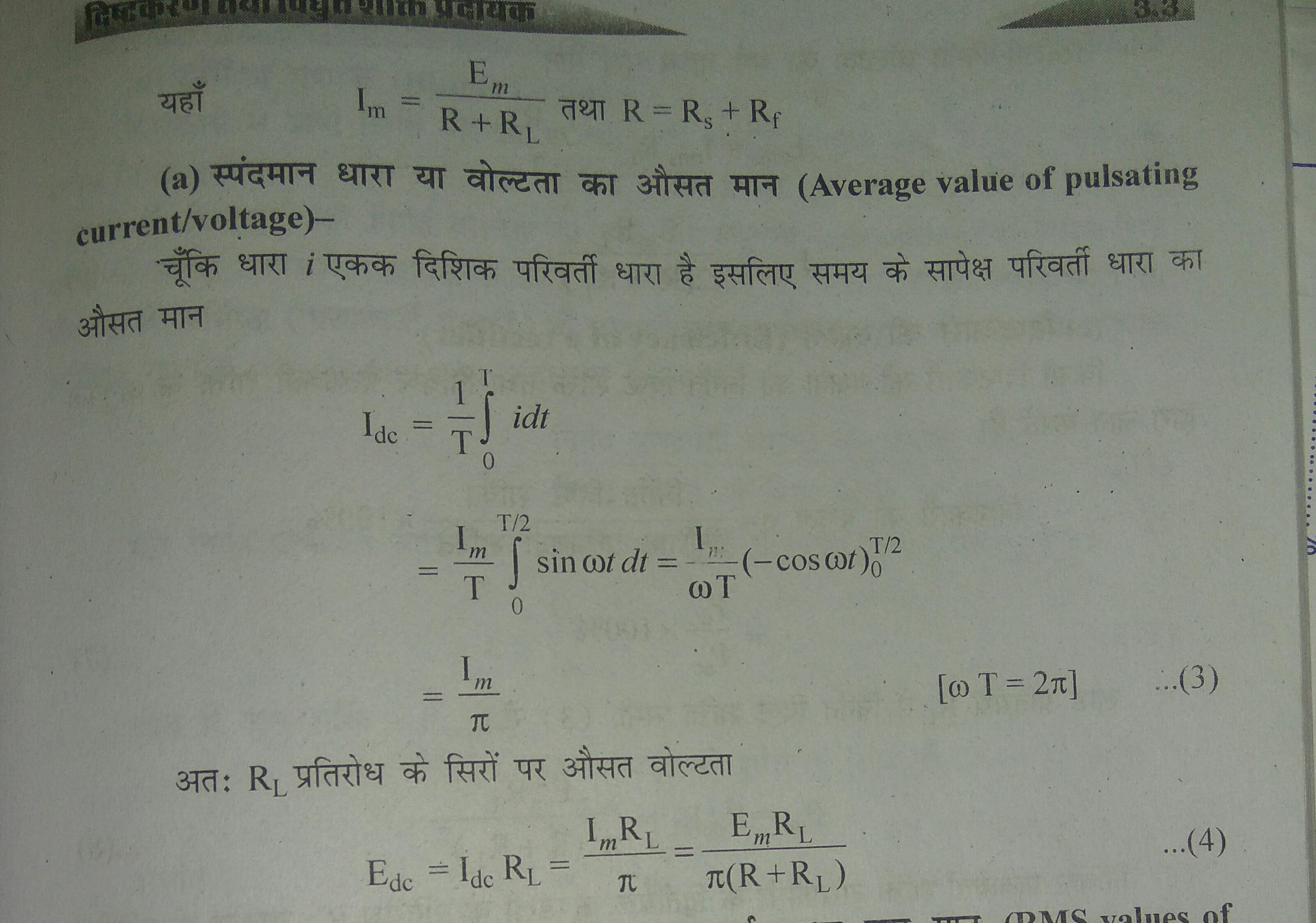

    i wrote formulas for half wave and full wave rectifier.. hope you will get... only difference is of 2 because in full have rectifier transformer is central tape that why Vm=2Vs but if the rectifier is half wave or Bridger rectifier then Vm=Vs.... so now you know what is the formula of Vdc(i.e Vm/π) for half wave,full wave, bridge rectifier...

  • comment-profile-img>
    Ruby negi best-answer

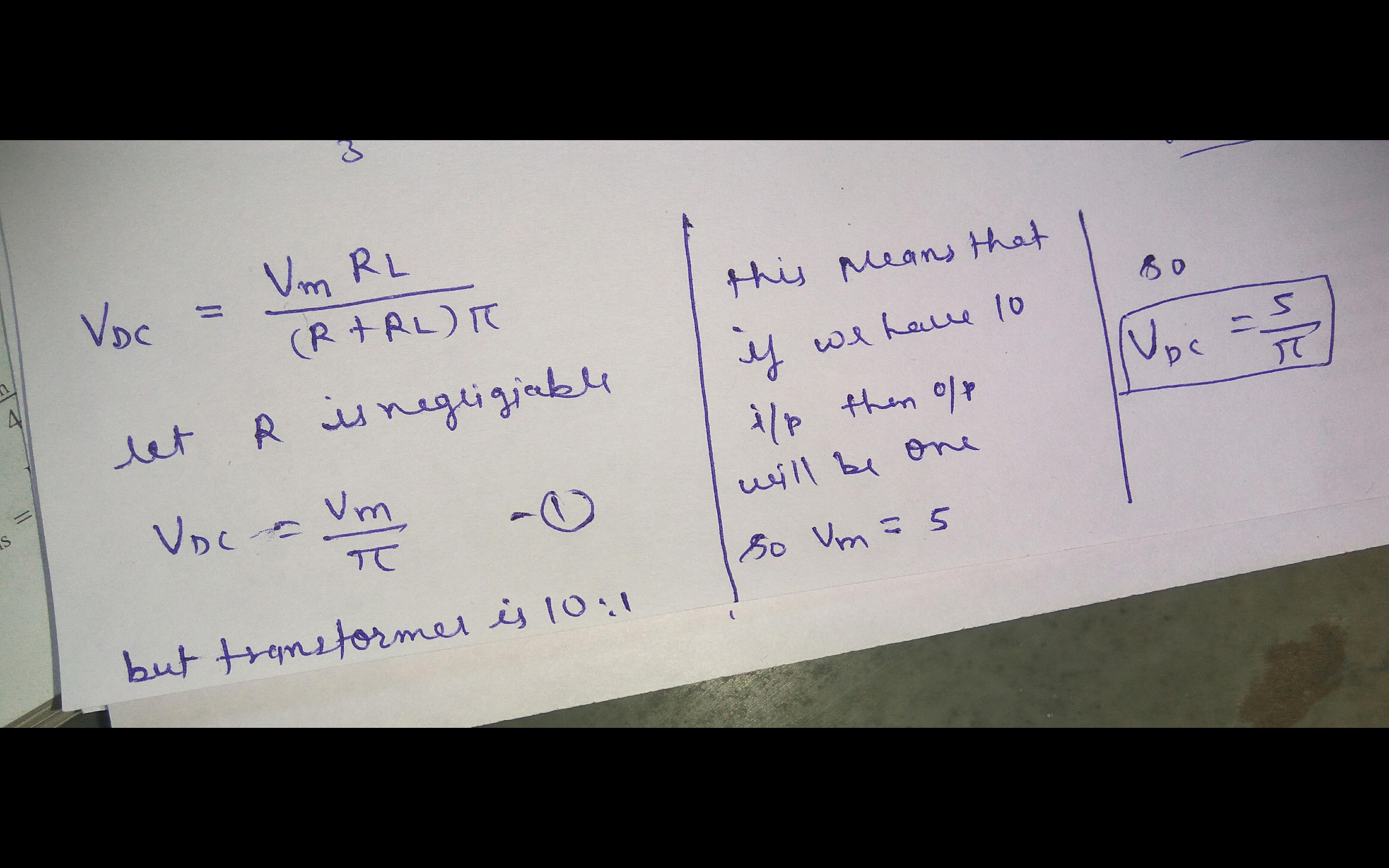

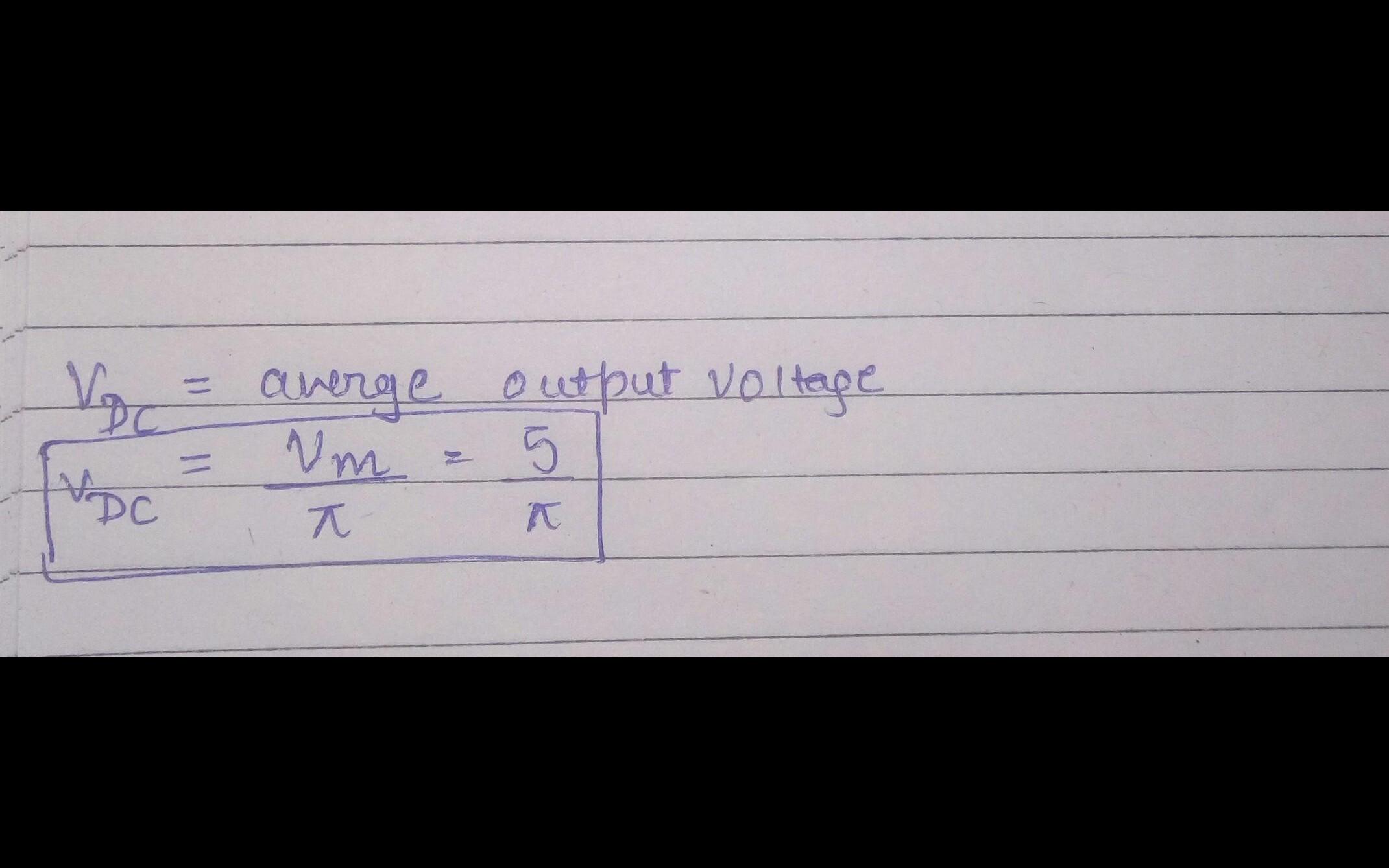

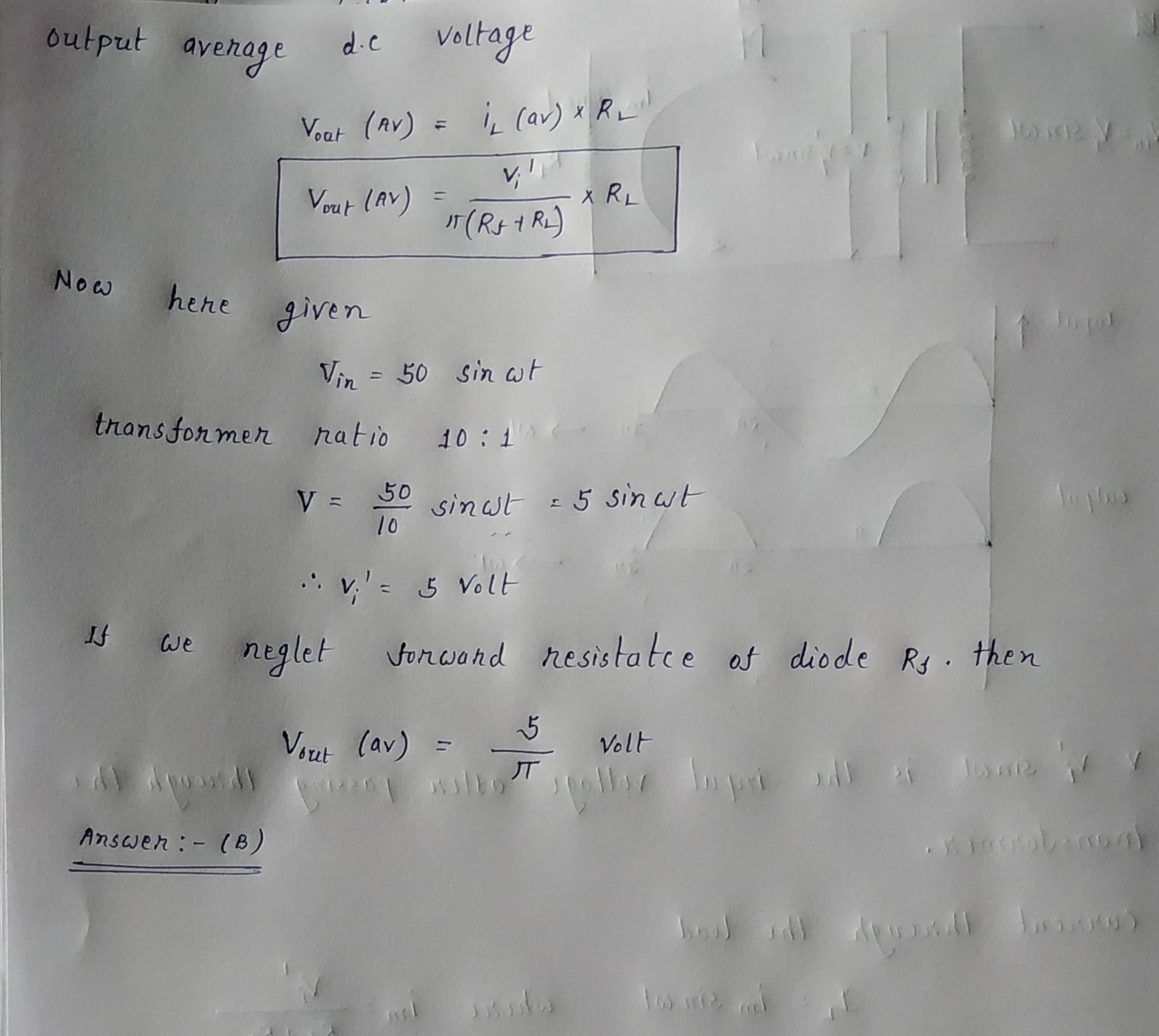

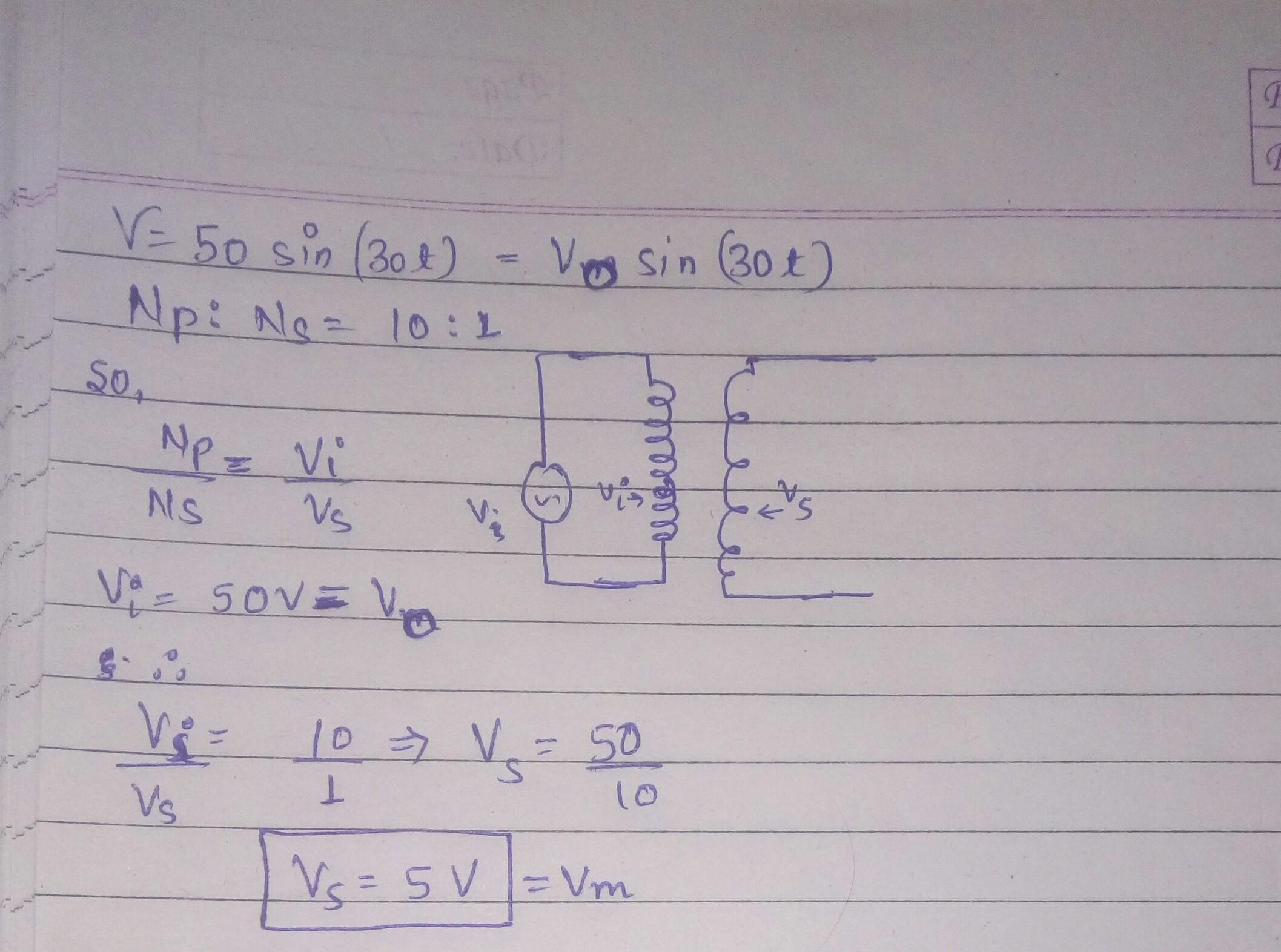

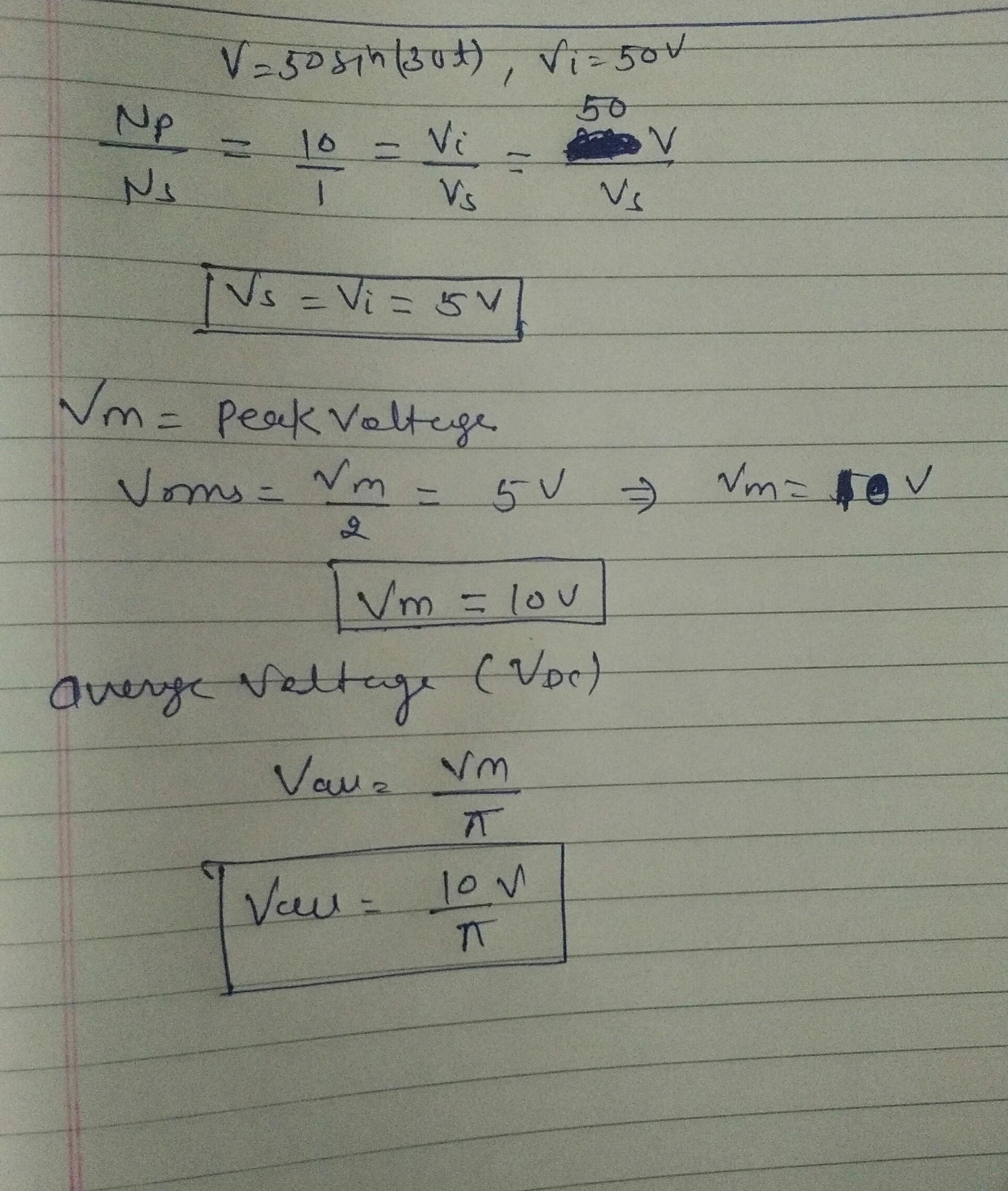

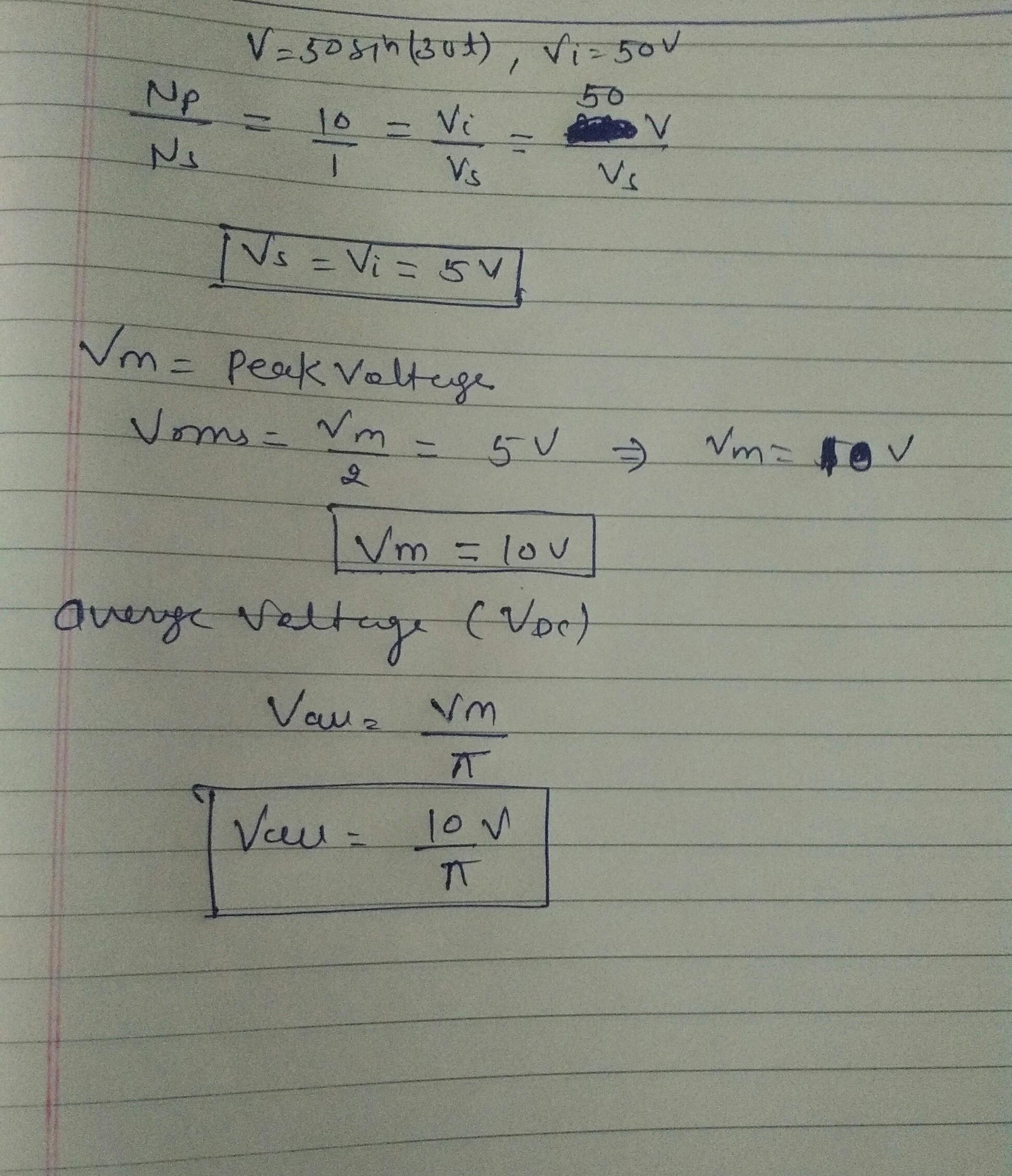

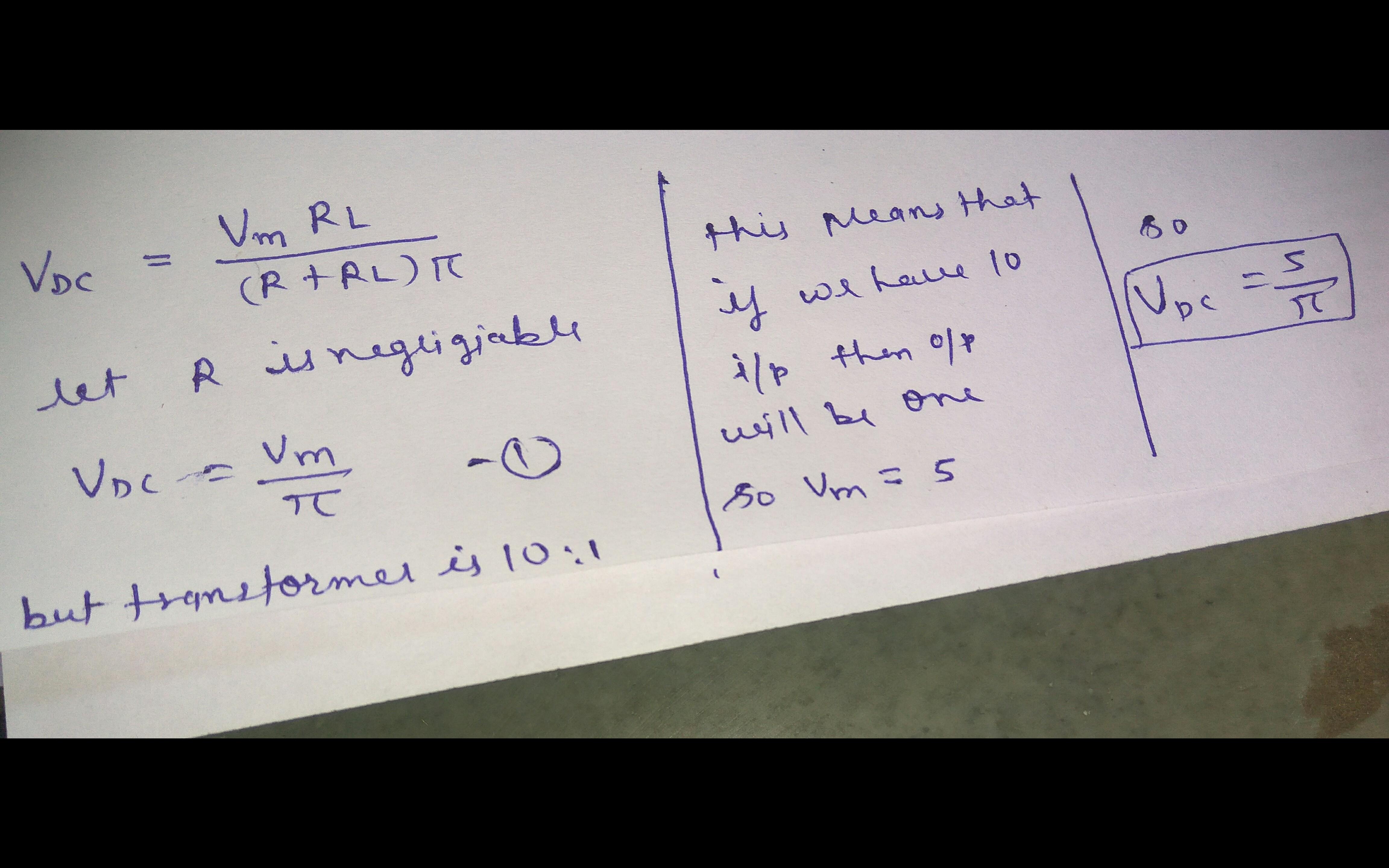

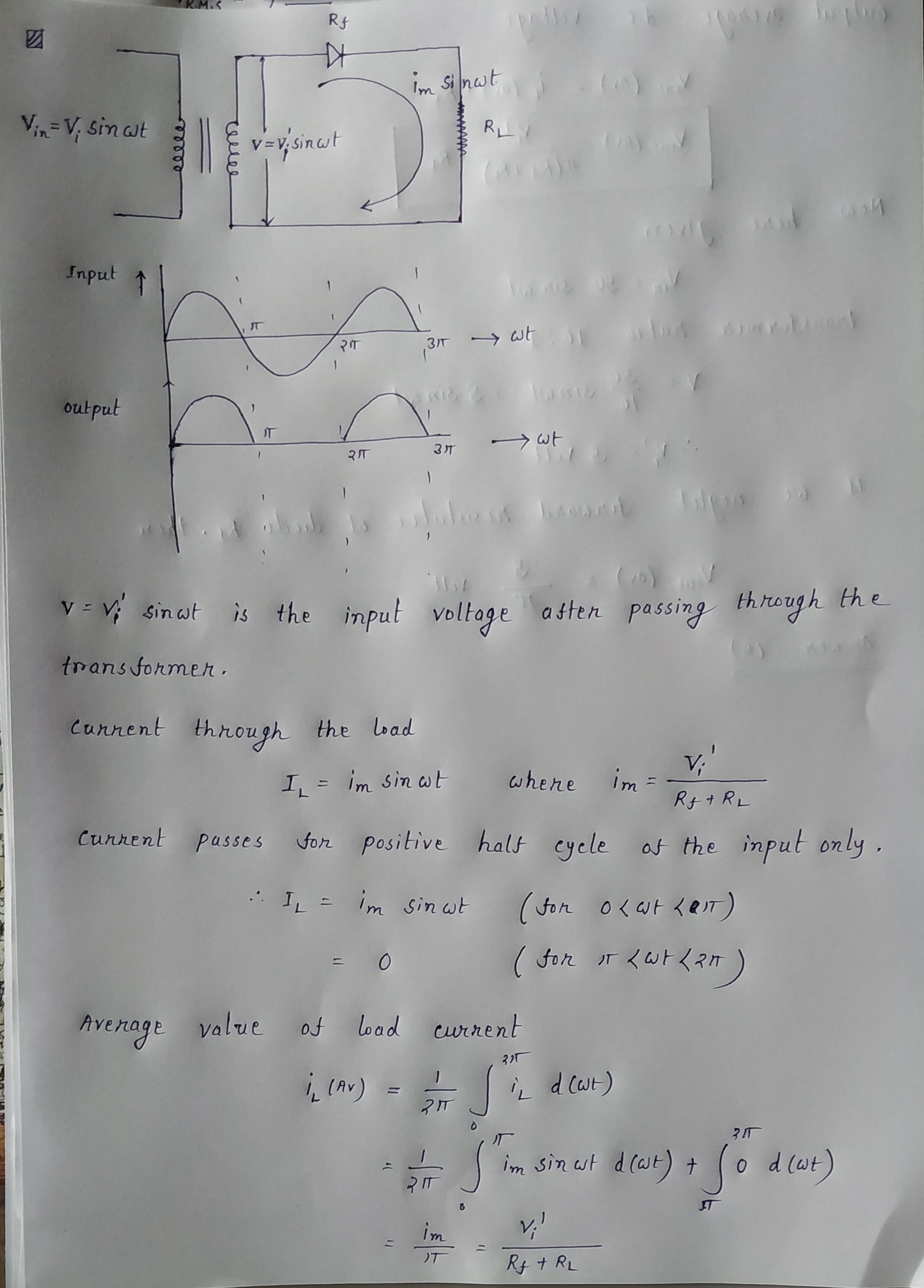

    complete solution.. in half wave rectifier Vdc=Vm/π and Vm=Vs...
