Xample: two sinusoidal signals are sent to an analog multiplier of scale factor iv followed by a low pass filter csir net physics dec. 20161 v, = 5 cos(100t) tr

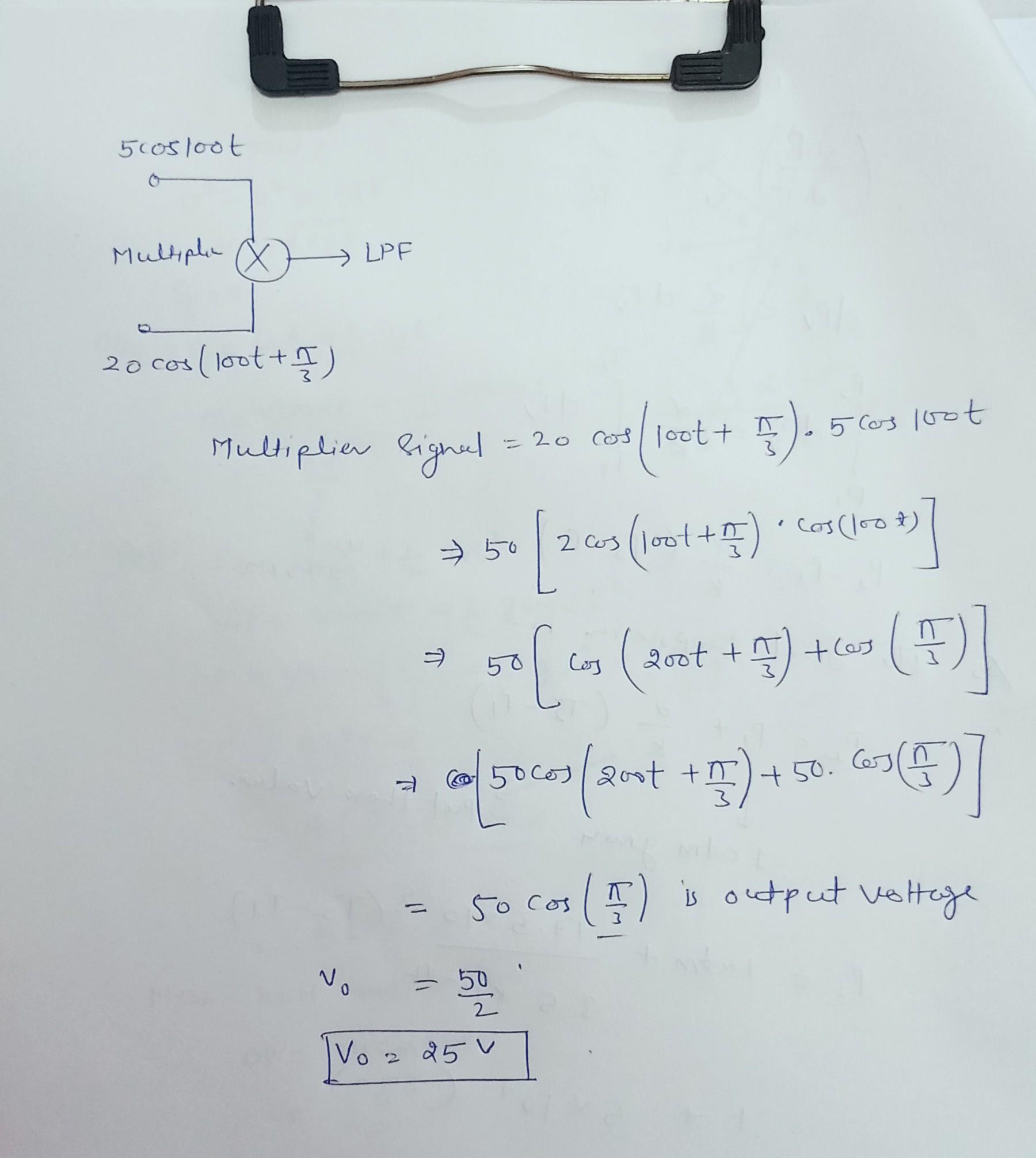

xample: Two sinusoidal signals are sent to an analog multiplier of scale factor IV followed by a low pass filter CSIR NET Physics Dec. 20161 V, = 5 cos(100t) TrADSTer funcho LPF Multiplier f=5Hz we piot 1a V, = 20 cos(100t + r/3) If the roll of frequency of LPF 1s f = 5Hz the output voltage Vis. (A) 5 V (B) 25 V (C) 100 V (D) 50 V

1 Answer(s) Answer Now
